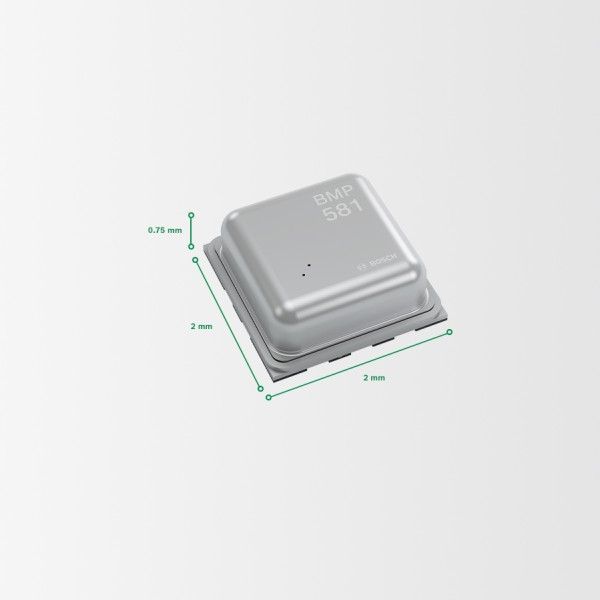

BOSCH BMP581 Barometric Pressure Sensor

Specifications

Product Introduction

The BMP581 is an absolute barometric pressure sensor. Its small dimensions, its low power consumption and the highest performance allow the implementation in a wide range of applications.

Features

  • Temperature operating range: -40 .. 85°C
  • Ultra low noise: < 0.1 PaRMS natively (without low-pass filter enabled)
  • 1.3 µA at 1Hz in low power mode
  • Absolute pressure accuracy: ± 0.5 hPa (max)
  • Relative pressure accuracy: 0.06 hPa per 10 kPa step
  • Pressure Temperature-induced offset: ± 0.5 Pa/K
  • Programmable low-pass filtering
  • On-chip FIFO buffer for up to 32 pressure samples
  • Programmable interrupts, including pressure-changed detection
  • 6 bytes user programmable non-volatile memory
  • RoHS compliant, halogen and lead free

Applications

  • Enhancement of GPS navigation (e.g. time-to-first-fix improvement, dead-reckoning, slope detection)
  • Indoor navigation (floor detection, elevator detection)
  • Outdoor navigation
  • Sports applications like calorie counting, fitness activity identification
  • Emergency caller location
  • Weather forecast
  • Vertical velocity indication (e.g. rise/sink speed)
  • Altitude control of drones and flying toys
  • Handsets such as mobile phones, tablet PCs, GPS devices
  • Navigation systems
  • Portable health care devices
  • Home weather stations
  • Drones and flying toys
  • Smart watches
  • Virtual and augmented reality devices

Specifications Table

Pressure Operating Range 30~125 kPa
Temperature Operating Range -40~85 °C
Absolute Pressure Accuracy ± 0.5 hPa (max)
Relative Pressure Accuracy 0.06 hPa per 10 kPa step
Pressure Temperature-induced Offset ± 0.5 Pa/K
Ultra Low Noise < 0.1 PaRMS
Current Consumption (1Hz Low Power Mode) 1.3 µA
Output Data Rate (CONTINUOUS Mode) Up to 480 Hz
Output Data Rate (NORMAL Mode) 0.125~240 Hz
Supply Voltage VDD 1.71 V~3.6 V
Supply Voltage VDDIO 1.08 V~3.6 V
Digital Interface SPI (4-wire, 3-wire), I3C, I²C (Fm+)
SPI Clock Frequency 12 MHz
I3C Clock Frequency 12.5 MHz
I²C Clock Frequency Up to 1 MHz
FIFO Buffer Up to 32 pressure samples
Non-volatile Memory 6 bytes user programmable
Package Type 10-pin metal-lid LGA
Package Footprint 2.0 × 2.0 mm²
Package Height Max 0.8 mm

To learn more, please download the PDF.
