Name: ENS210
Brand: ScioSense
SKU: ENS210
Availability: OutOfStock

Specifications

Product Introduction

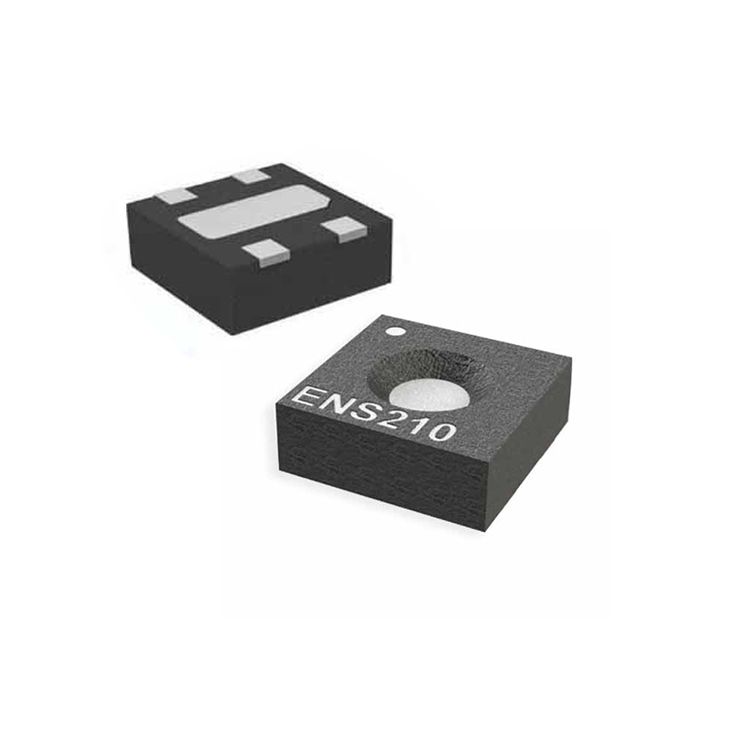

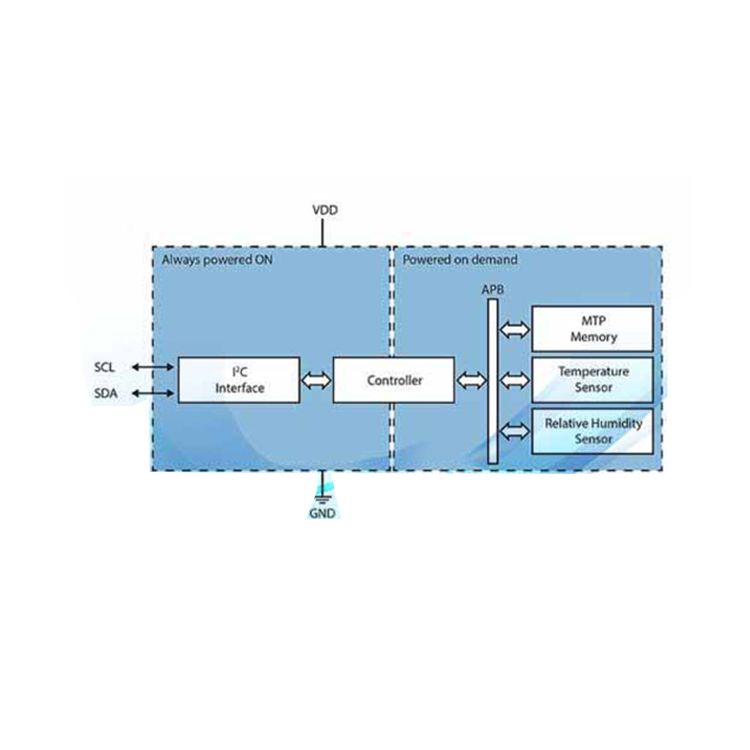

The ENS210 integrates one relative humidity sensor and one high-accuracy temperature sensor. The device is encapsulated in a QFN4 package and includes an I²C slave interface for communication with a master processor.

Features

Ultra-accurate temperature sensor (±0.15°C)
Relative humidity sensor (Typ:±2.0%RH)
Temperature operating range (–40°C to 100°C)
Relative humidity operating range (0% to 100%)
Wide operating voltage: 1.71V to 3.60V
Small foot-print: 2.0mm x 2.0mm x 0.75mm
Standard (100kbit/s) and fast (400kbit/s) I²C
Automatic low-power standby when not measuring
Active current: 6.6μA @ 1Hz (1.8V)
Standby current: 40nA
Digital pre-calibrated relative humidity and temperature sensor
Output directly in %RH and Kelvin
Wide supply voltage range
Long-term stability

Applications

Building Automation / Smart home / HVAC
Indoor air quality detection
Demand-controlled ventilation
Smart thermostats
Home appliances: air cleaners, purifiers, refrigerators, washing machines, dishwashers, dryers
Mobiles / Wearables
IoT devices
Portable devices for personal health and wellness
Weather stations

Specifications Table

Parameter	Value
Temperature sensor accuracy	±0.15°C
Relative humidity sensor accuracy	Typ:±2.0%RH
Temperature operating range	–40°C to 100°C
Relative humidity operating range	0% to 100%
Operating voltage	1.71V to 3.60V

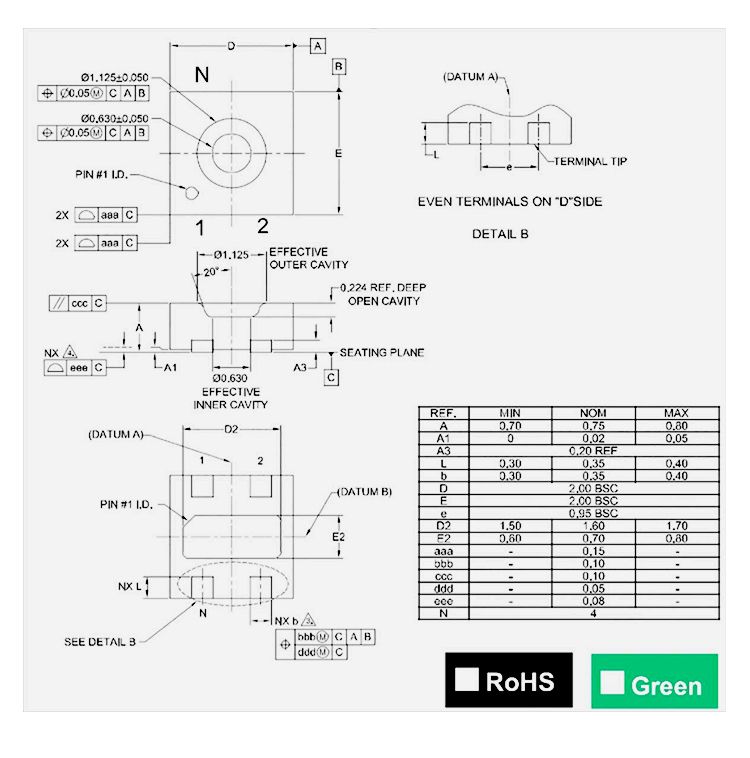

Package dimensions	2.0mm x 2.0mm x 0.75mm
I²C interface speed	Standard (100kbit/s) and fast (400kbit/s)
Active current	6.6μA @ 1Hz (1.8V)
Standby current	40nA
Supply voltage (absolute max)	-0.30V to 4.60V
Latch-up current	100 mA
ESD HBM	±2000 V
ESD CDM	±500 V
Moisture sensitivity level	MSL 1
Storage temperature	10°C to 50°C
Storage relative humidity	20% to 60% RH
Operating ambient temperature	–40°C to 100°C
Operating ambient relative humidity	0% to 100% RH

To learn more, please download the PDF.
