MICS-VZ-89TE

Name: MICS-VZ-89TE
Brand: Amphenol
SKU: MICS-VZ-89TE
Availability: OutOfStock

Manufacturer:: Amphenol

Amphenol MICS-VZ-89TE VOC Gas Sensor

Specifications

Product Introduction

The MiCS-VZ-89TE is an integrated sensor board for Indoor Air Quality monitoring. It combines state-of-the-art MOS technology to monitor tVOCs and CO2 equivalent variations in confined spaces, such as meeting rooms or vehicle cabins. The dual signal output can be used to control ventilation on-demand, saving energy and reducing cost-of-ownership.

Features

Calibration-free
Low power
Wide VOCs detection range
High sensitivity
High resistance to shocks and vibrations

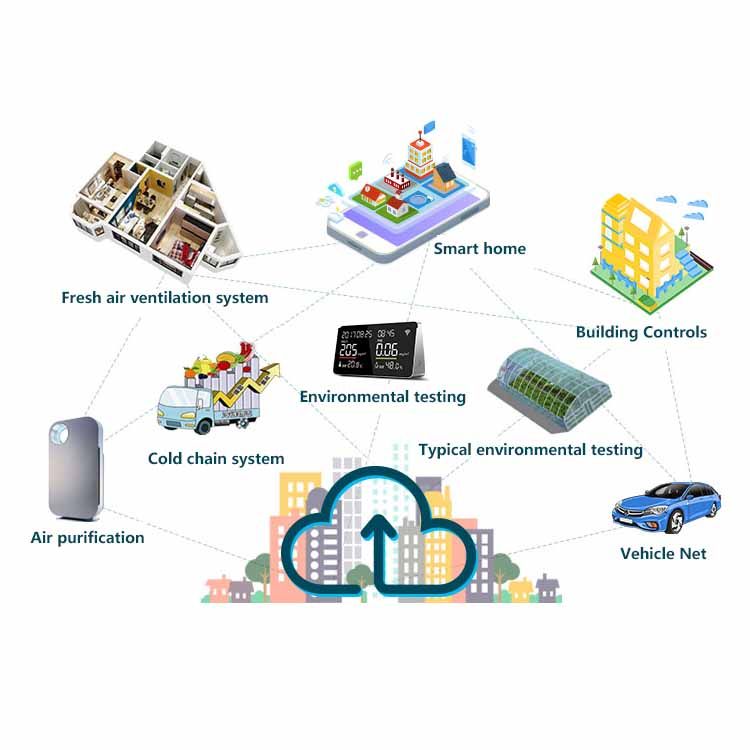

Applications

Indoor Air Quality monitoring
Ventilation control in meeting rooms
Vehicle cabin air quality monitoring

Specifications Table

Detection Method	Semiconductor gas sensor, detecting a wide range of VOCs
Monitoring Range	400-2000 ppm equivalent CO2
Monitoring Range	0-1000 ppb isobutylene equivalent tVOCs
Response Time	Equivalent to conventional NDIR-CO2 sensors
Response Time	< 5 seconds for tVOC
Refresh Output Frequency	1 Hz
Supply Voltage	3.3V DC regulated +/-5%
Operating Power	125 mW
Warm-up Time	15 min
Operating Temperature	0°C to 50°C
Operating Humidity	0%RH to 95%RH (non condensing)
Storage Temperature	-40°C to 80°C
Storage Humidity	0%RH to 95%RH (non condensing)

To learn more, please download the PDF.
