Name: PMS5303
Brand: PLANTOWER
SKU: PMS5303
Availability: OutOfStock

Specifications

Product Introduction

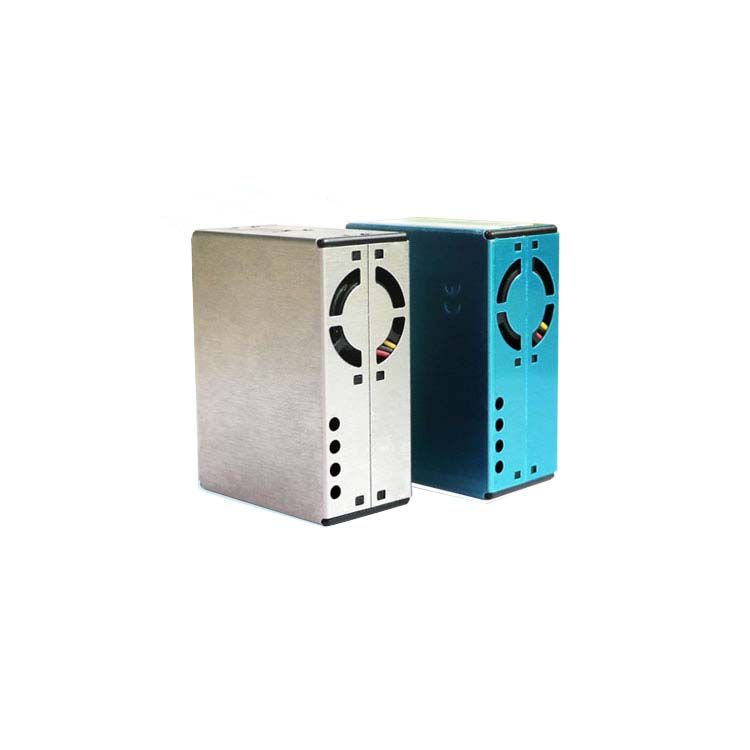

PMS5303 is a kind of digital and universal particle concentration sensor, which can be used to obtain the number of suspended particles in the air, i.e. the concentration of particles, and output them in the form of digital interface. This sensor can be inserted into variable instruments related to the concentration of suspended particles in the air or other environmental improvement equipments to provide correct concentration data in time.

Features

Zero false alarm rate
Real-time response
Correct data
Minimum distinguishable particle diameter: 0.3 micrometer
High anti-interference performance because of the patent structure of six sides shielding
Optional direction of air inlet and outlet in order to adapt the different design

Applications

Instruments related to the concentration of suspended particles in the air
Environmental improvement equipments

Specifications Table

Particle Range of measurement	0.3~1.0; 1.0~2.5; 2.5~10 Micrometer (μm)
Particle Counting Efficiency	50%@0.3μm 98%@>=0.5μm
Particle Effective Range (PM2.5 standard)	0~500 μg/m³
Particle Maximum Range (PM2.5 standard)	≥1000 μg/m³
Particle Effective Range (PM10 standard)	0~500 μg/m³
Particle Maximum Range (PM10 standard)	≥1500 μg/m³
Particle Resolution	1 μg/m³
Particle Maximum Consistency Error (PM2.5 standard data)	±10%@100~500μg/m³ ±10μg/m³@0~100μg/m³
Particle Maximum Consistency Error (PM10 standard data)	±15%@100~500μg/m³ ±15μg/m³@0~100μg/m³
Particle Standard Volume	0.1 Litre (L)
Single Response Time	<1 Second (s)
Total Response Time	<10 Second (s)
DC Power Supply	Typ:5.0 Min:4.5 Max:5.5 Volt (V)
Active Current	≤100 Milliampere (mA)
Standby Current	≤2 Milliampere (mA)
Interface Level	L <0.8 @3.3 H >2.7@3.3 Volt (V)
Working Temperature Range	-10~+60 ℃
Working Humidity Range	0~95%RH(no-condensing)
Storage Temperature Range	-40~+85 ℃
Noise	≤29dB@0.05M dB
Physical Size	50×38×21 Millimeter (mm)

To learn more, please download the PDF.
