Name: PMS6003
Brand: PLANTOWER
SKU: PMS6003
Availability: OutOfStock

Specifications

Product Introduction

PMS6003 is a digital and universal particle concentration sensor, which can be used to obtain the number of suspended particles in the air, i.e. the concentration of particles, and output them in the form of digital interface. This sensor can be inserted into variable instruments related to the concentration of suspended particles in the air or other environmental improvement equipments to provide correct concentration data in time. PMS6003 has the two lasers technology with patent. The two lasers will life time of the sensor doubled.

Features

Zero false alarm rate
Real-time response
Correct data
Minimum distinguishable particle diameter: 0.3 micrometer
High anti-interference performance because of the patent structure of six sides shielding

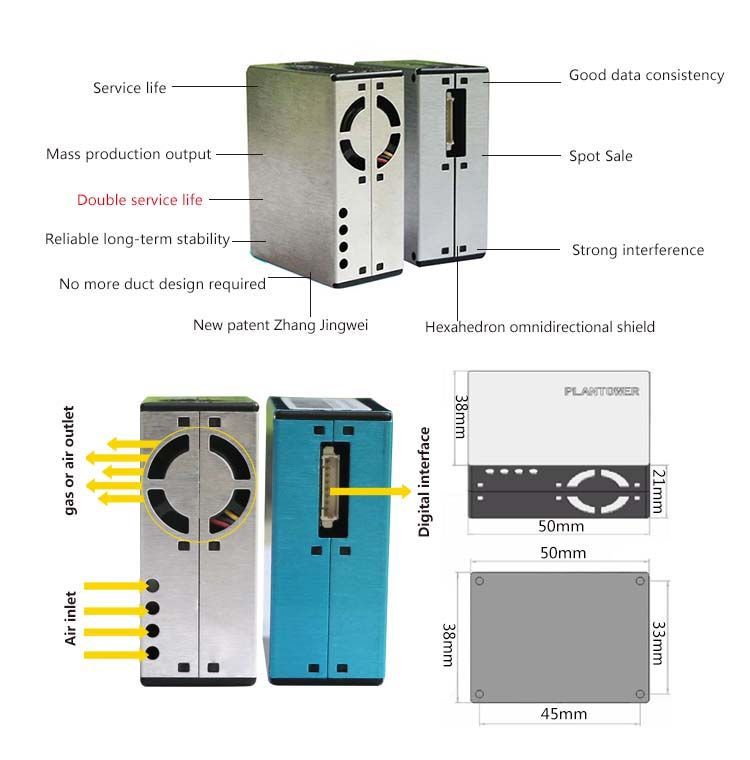

Optional direction of air inlet and outlet in order to adapt the different design
Two lasers in one sensor makes the life time doubled

Applications

Air quality monitoring instruments
Environmental improvement equipment
HVAC systems
Air purifiers
Industrial dust monitoring

Specifications Table

Range of measurement	0.3~1.0; 1.0~2.5; 2.5~10 Micrometer (μm)
Counting Efficiency	50%@0.3μm 98%@>=0.5μm
Effective Range (PM2.5 standard)	0~500 μg/m³
Maximum Range (PM2.5 standard)	≥1000 μg/m³
Resolution	1 μg/m³
Particle Maximum Consistency Error (PM2.5 standard data)	±10%@100~500μg/m³ ±10μg/m³@0~100μg/m³
Particle Standard Volume	0.1 Litre (L)
Single Response Time	<1 Second (s)
Total Response Time	≤10 Second (s)
DC Power Supply	Typ:5.0 Min:4.5 Max: 5.5 Volt (V)
Active Current	≤100 Milliampere (mA)
Standby Current	≤200 Microampere (μA)
Interface Level	L <0.8 @3.3 H >2.7@3.3 Volt (V)
Working Temperature Range	-10~+60 ℃
Working Humidity Range	0~99%
Storage Temperature Range	-40~+80 ℃

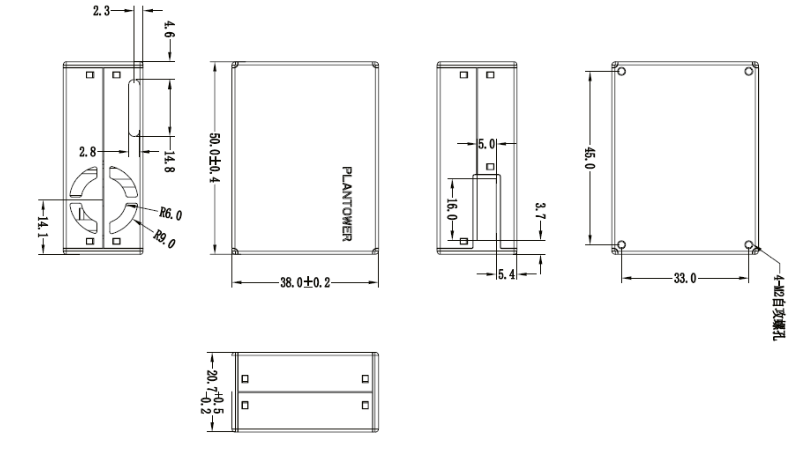

Physical Size	50×38×21 Millimeter (mm)

To learn more, please download the PDF.
