Name: PMS7003
Brand: PLANTOWER
SKU: PMS7003
Availability: InStock

Specifications

Product Introduction

PMS7003 is a kind of digital and universal particle concentration sensor, which can be used to obtain the number of suspended particles in the air, i.e. the concentration of particles, and output them in the form of digital interface. This sensor can be inserted into variable instruments related to the concentration of suspended particles in the air or other environmental improvement equipments to provide correct concentration data in time.

Features

Zero false alarm rate
Real-time response
Correct data
Minimum distinguishable particle diameter: 0.3 micrometer
High anti-interference performance because of the patent structure of six sides shielding

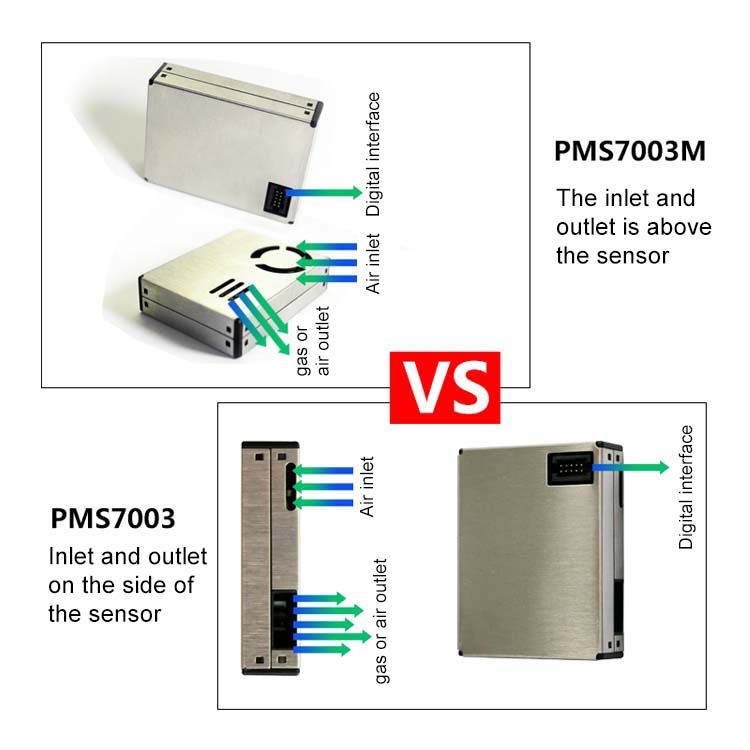

Optional direction of air inlet and outlet in order to adapt the different design

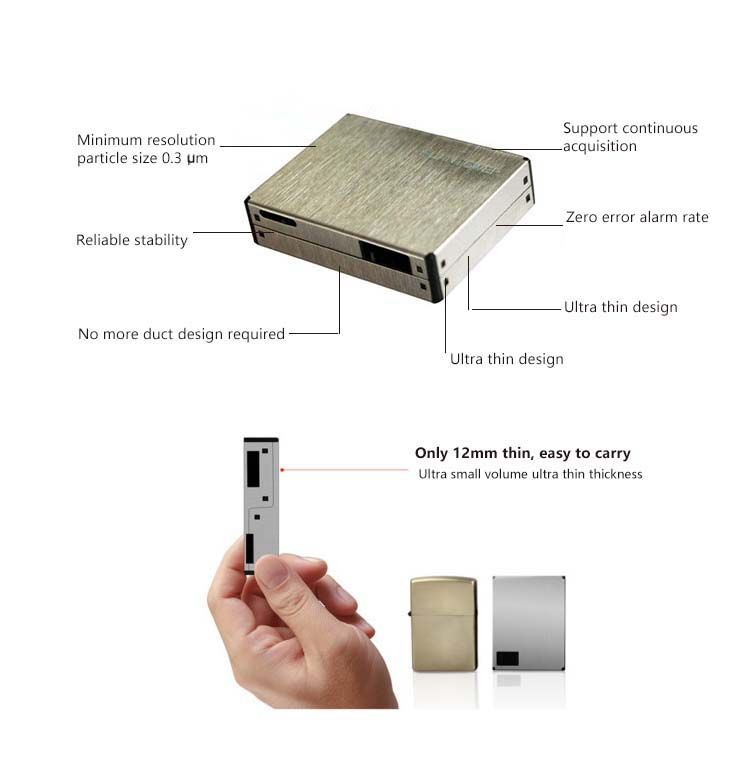

Very Slim

Applications

Air quality monitoring instruments
Environmental improvement equipment
HVAC systems
Air purifiers
Other instruments related to suspended particle concentration

Specifications Table

Range of measurement	0.3~1.0; 1.0~2.5; 2.5~10 Micrometer (μm)
Counting Efficiency	50%@0.3μm 98%@>=0.5μm
Effective Range (PM2.5 standard)	0~500 μg/m³
Maximum Range (PM2.5 standard)*	≥1000 μg/m³
Resolution	1 μg/m³
Maximum Consistency Error (PM2.5 standard data)*	±10%@100~500μg/m³ ±10μg/m³@0~100μg/m³
Standard Volume	0.1 Litre (L)
Single Response Time	＜1 Second (s)
Total Response Time	≤10 Second (s)
DC Power Supply	Typ:5.0 Min:4.5 Max: 5.5 Volt (V)
Active Current	≤100 Milliampere (mA)
Standby Current	≤200 Microampere (μA)
Interface Level	L <0.8 @3.3 H >2.7@3.3 Volt (V)
Working Temperature Range	-10~+60 ℃
Working Humidity Range	0~99%
Storage Temperature Range	-40~+80 ℃
Physical Size	48×37×12 Millimeter (mm)

To learn more, please download the PDF.
