Name: PMSX003
Brand: PLANTOWER
SKU: PMSX003
Availability: OutOfStock

Specifications

Product Introduction

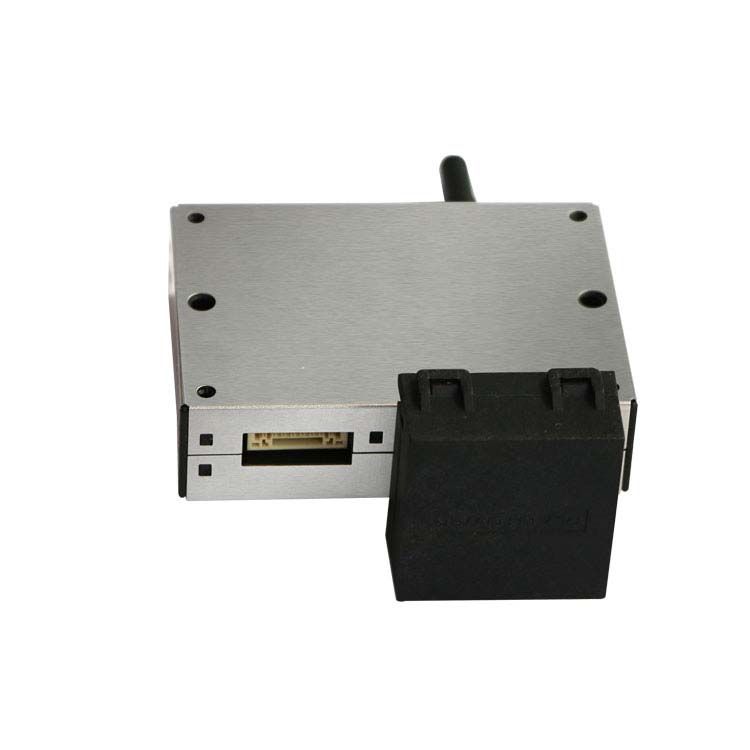

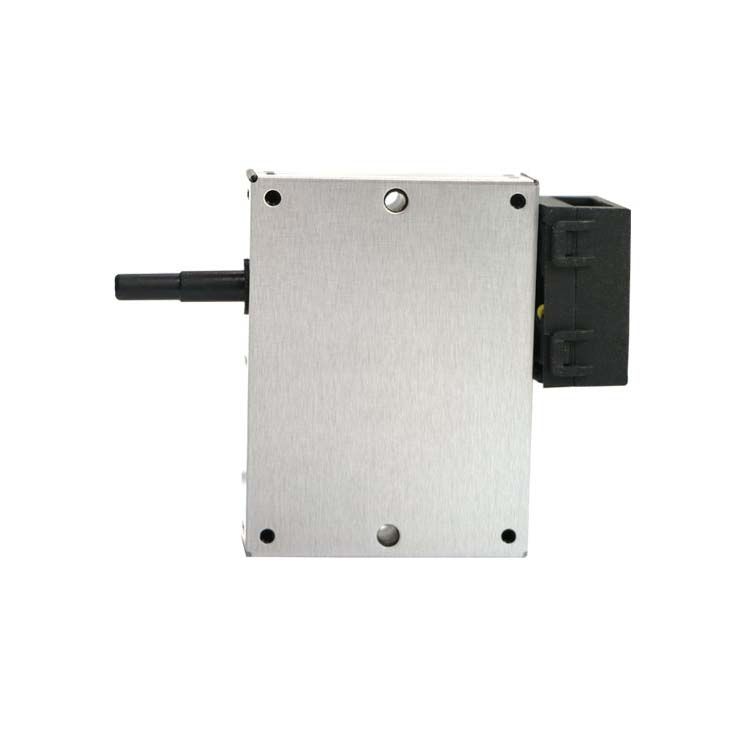

The Particulate Matter Sensor Model PMSX003N is a digital and universal particle concentration sensor. It is used to obtain the number of suspended particles in the air, i.e., the concentration of particles, and outputs them in the form of a digital interface. This sensor can be inserted into various instruments related to the concentration of suspended particles in the air or other environmental improvement equipment to provide correct concentration data in time.

Features

Laser scattering principle
Zero false alarm rate
Real-time response
Minimum distinguishable particle diameter: 0.3 micrometer
Double duct design, connect air pump or fan
Double laser design, enhance large particles detection
Applied outdoors, wide temperature range

Applications

Air quality monitoring instruments
Environmental improvement equipment
HVAC systems
Air purifiers

Specifications Table

Particle Range of Measurement	0.3～1.0µm; 1.0～2.5µm; 2.5～10µm; >10µm
Particle Counting Efficiency	50%@0.3µm 98%@≥0.5µm
PM2.5, PM10 Effective Range	0～1000µg/m³
PM2.5, PM10 Maximum Range	≥5000µg/m³
TSP Effective Range	0～2000µg/m³
TSP Maximum Range	≥10000µg/m³
Particle Resolution	1µg/m3
Particle Maximum Consistency Error (PM2.5)	±10%@100～1000µg/m3; ±10µg/m3@0～100µg/m3
Particle Maximum Consistency Error (PM10)	±15%@100～1000µg/m3; ±15µg/m3@0～100µg/m3
Particle Standard Volume	0.1L
Single Response Time	<2s
Total Response Time	≤10s
DC Power Supply	Typ: 5.0V Min: 4.5V Max: 5.5V
Active Current	≤300mA
Standby Current	≤6mA
Interface Level	L<0.8V @3.3V; H>2.7V @3.3V
Working Temperature Range	-30 ～ +70℃
Working Humidity Range	0~95% (No condensation)
Storage Temperature Range	-40 ～ +85℃
Physical Size	60mm×45mm×31mm (Fan); 60mm×45mm×16mm (Pump)

To learn more, please download the PDF.
