Name: S11
Brand: SenseAir
SKU: S11
Availability: OutOfStock

Specifications

Product Introduction

Senseair Sunrise is a miniature sensor module for battery-powered applications. It gives full control over integration of sensor into a host system, flexibility in changing of CO₂ measurement period and power consumption.

Features

Wide supply voltage range enables a variety of battery options
Adjustable measurement period by host
Adjustable ABC (Automatic Baseline Correction) period by host
Ultra-low power consumption

Applications

Battery-powered indoor air quality monitors
Portable CO₂ detectors
HVAC and building automation
Smart home and IoT devices
Educational and research equipment

Specifications Table

Target gas	Carbon dioxide (CO₂)
Operating principle	Non-dispersive infrared (NDIR)
Operating range	0 – 50℃, 0 – 85% RH (non-condensing)
Measurement range	400 – 5000 ppm; extended up to 10000 ppm
Accuracy [CO₂]	±(30 ppm + 3% of reading) (extended range: ±10% of reading)
Pressure dependence	1.6% reading per kPa deviation from normal pressure
RMS noise (filtered)	0.7 ppm @ 400 ppm, 25℃ 1.8 ppm @ 3000 ppm, 25℃
RMS noise (unfiltered)	7 ppm @ 400 ppm, 25℃ 20 ppm @ 3000 ppm, 25℃
Power supply	3.05 – 5.5 V
Peak current	< 125 mA
Steady state current during sampling	85 mA
Average current (typical)	38 μA
Measurement setting	Default: 16 s, 8 samples (adjustable by host)

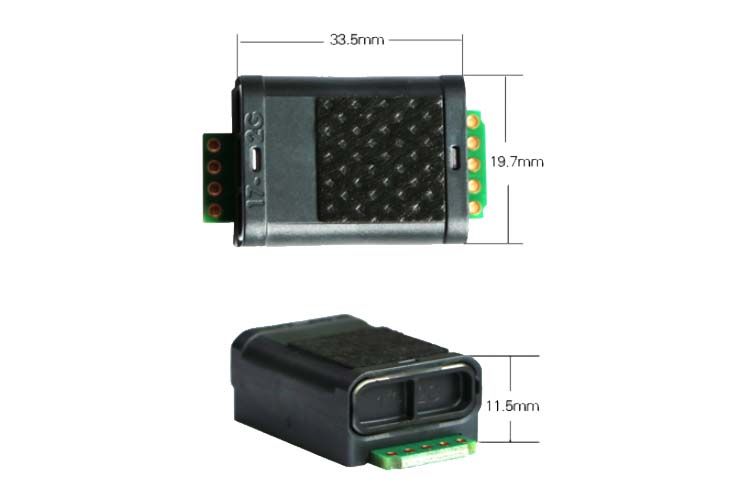

Dimensions (L × W × H)	33.5 × 19.7 × 11.5 mm
Life expectancy	> 15 years
Storage temperature	-40 – 70℃
Weight	5 g
Communication interface	UART / I²C

To learn more, please download the PDF.
