Name: S8-0053
Brand: SenseAir
SKU: S8-0053
Availability: OutOfStock

Specifications

Product Introduction

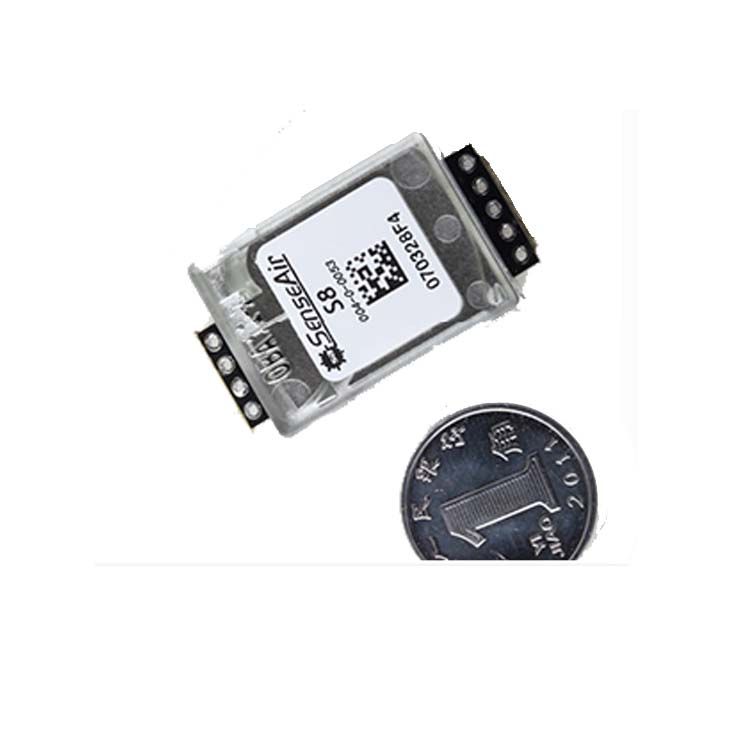

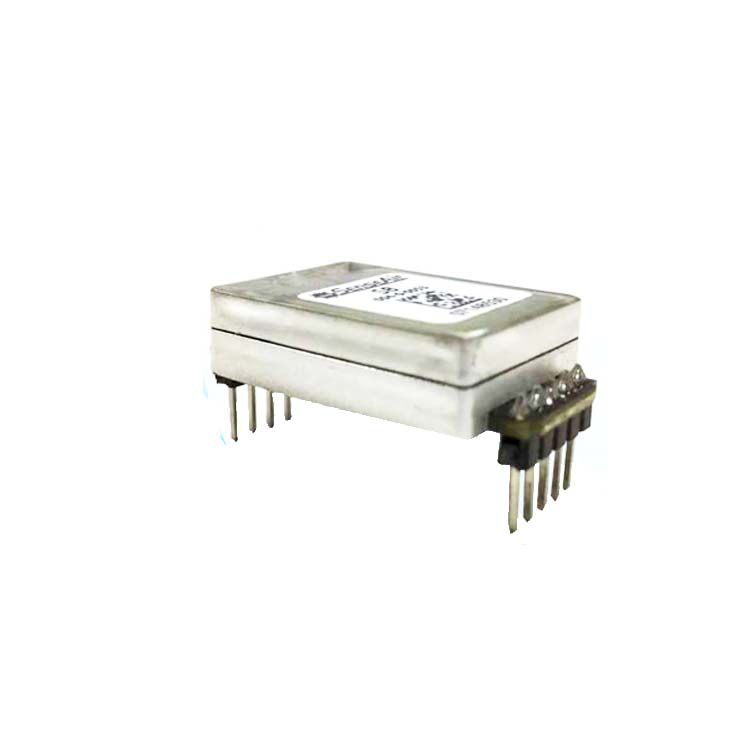

The SenseAir S8 LP is a miniature infrared CO2 sensor module designed for accurate measurement of carbon dioxide concentration in various applications. It utilizes non-dispersive infrared (NDIR) technology to provide reliable and maintenance-free operation. The module is compact, lightweight, and suitable for integration into a wide range of devices and systems.

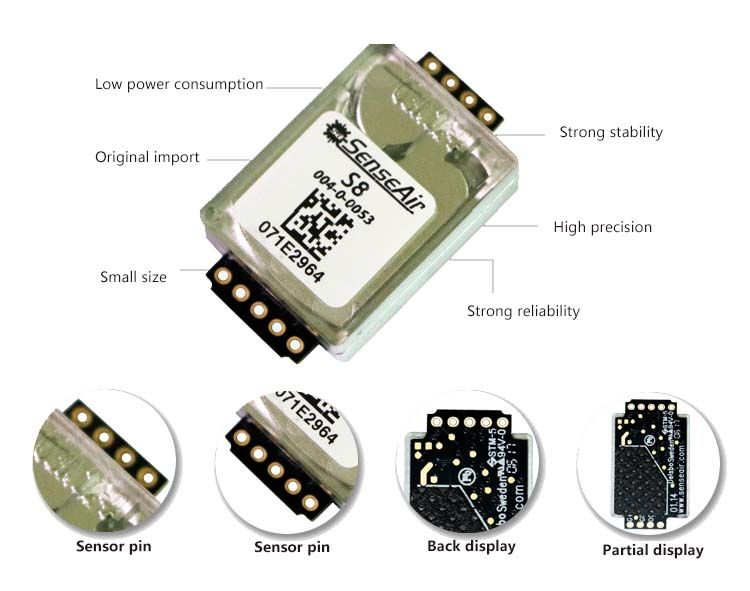

Features

Non-dispersive infrared (NDIR) operating principle
Measurement range of 400 to 2000 ppm, with extended range up to 10000 ppm
High accuracy of ±40 ppm ±3% of reading
Low power consumption with average current less than 18 mA
Long life expectancy of 15+ years
Multiple output options including UART, PWM, and alarm output
Maintenance-free operation with SenseAir ABC algorithm
Compact dimensions of 33.5 x 20 x 8.5 mm
RoHS compliant

Applications

Indoor air quality (IAQ) monitoring
HVAC control systems
Ventilation control
Greenhouse and agricultural monitoring
Industrial safety and process control
Portable and battery-operated devices

Specifications Table

Operating Principle	Non-dispersive infrared (NDIR)
Measurement interval	4 seconds
Accuracy	±40ppm ±3% of reading (Notes 3 and 4)
Pressure dependence	+ 1.6 % reading per kPa deviation from normal pressure
Response time	2 minutes by 90%
Operating temperature	0 to 50° C
Operating humidity	0 to 85% RH non condensed
Storage temperature	-40 to +70 C

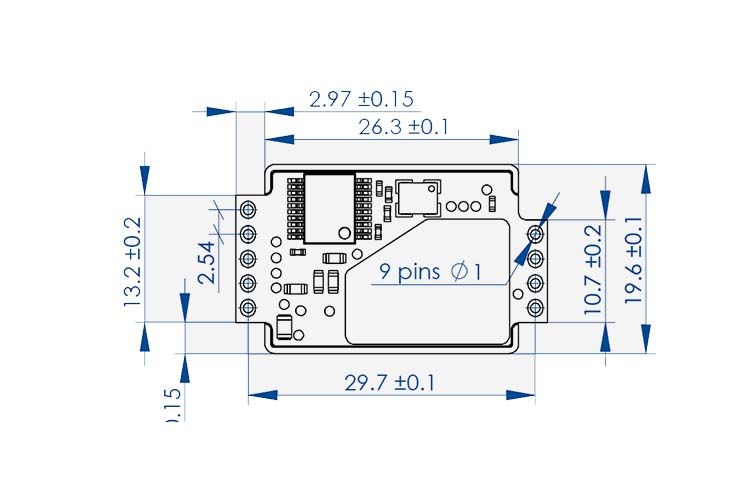

Dimensions	33.5 x 20 x 8.5 mm (max dimensions)
Power supply	4.5 V to 5.25 V unprotected against surges and reverse connection
Power consumption	300 mA peak, < 18 mA average.
PWM output, 1 kHz	0 to 100% duty cycle for 0 to 2000 ppm

To learn more, please download the PDF.
