SENSIRION SHT30-DIS-B2.5K Digital Humidity & Temperature Sensor

Specifications

Product Introduction

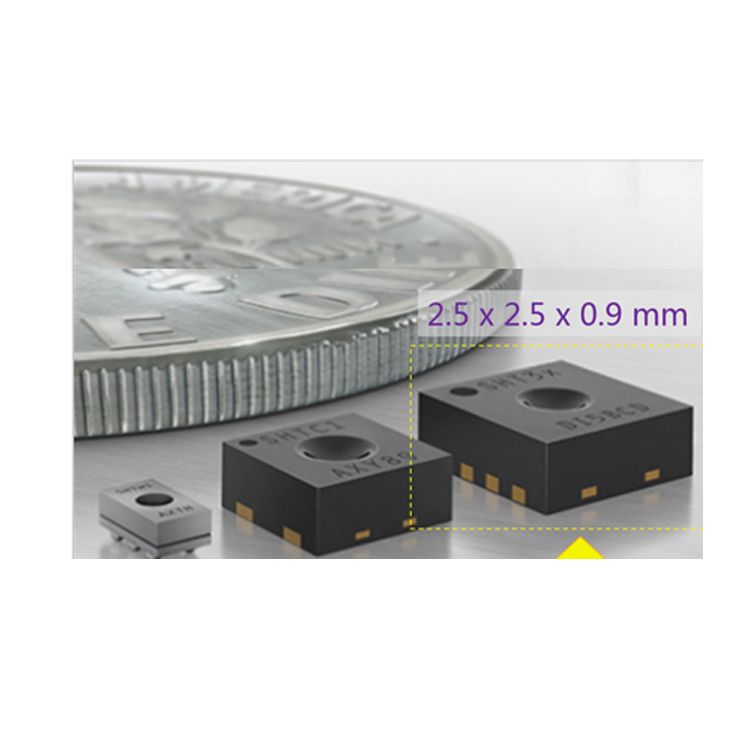

The SHT3x-DIS is a next-generation digital humidity and temperature sensor. It is built on a new CMOSens sensor chip, offering increased intelligence, reliability, and improved accuracy compared to its predecessor. The sensor provides fully calibrated, linearized, and temperature-compensated digital output. Its tiny DFN package has a footprint of 2.5 x 2.5 mm² with a height of 0.9 mm, allowing for integration into a wide variety of applications. The wide supply voltage range of 2.15 V to 5.5 V guarantees compatibility with diverse assembly situations.

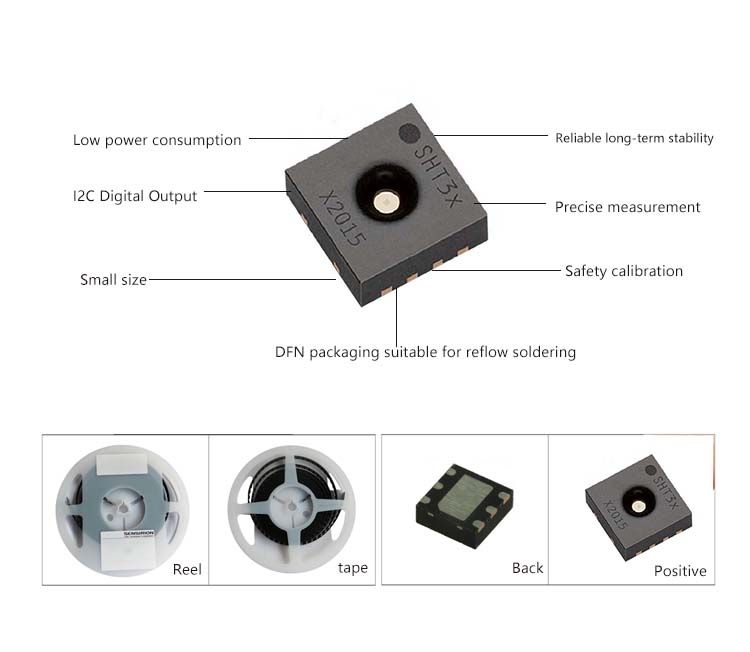

Features

  • Fully calibrated, linearized, and temperature compensated digital output
  • Wide supply voltage range, from 2.15 V to 5.5 V
  • I2C Interface with communication speeds up to 1 MHz
  • Typical accuracy of ±1.5 %RH and ±0.1 °C for SHT35
  • Very fast start-up and measurement time

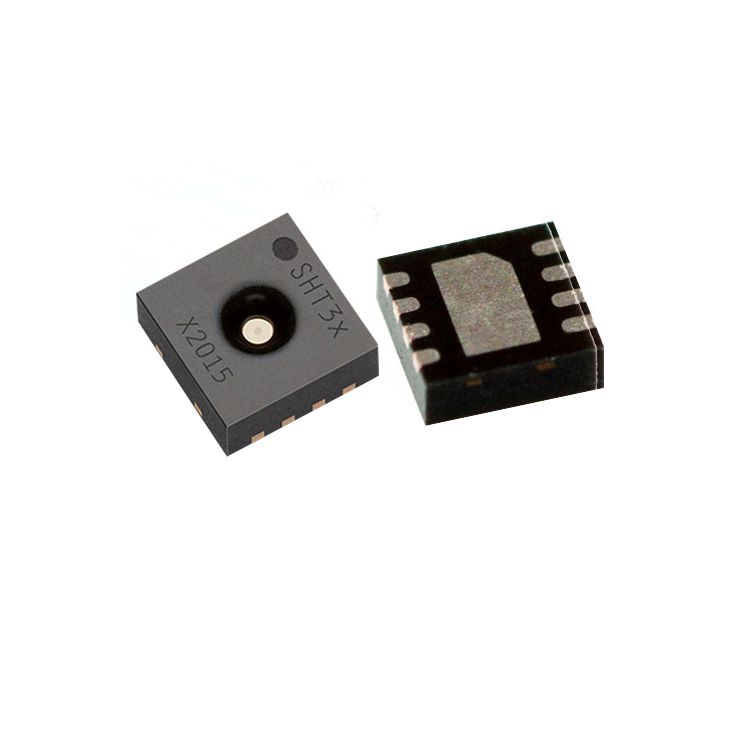

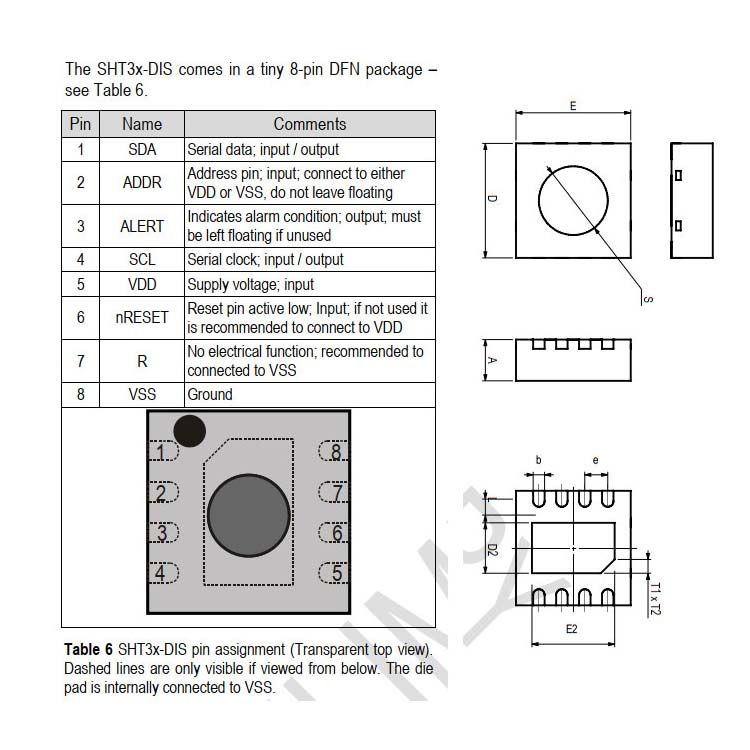

  • Tiny 8-Pin DFN package
  • High reliability and long-term stability
  • Industry-proven technology with a track record of more than 15 years
  • Designed for mass production
  • High signal-to-noise ratio

Applications

  • HVAC systems
  • Weather stations
  • Medical devices
  • Automotive applications
  • Consumer electronics
  • Industrial automation

Specifications Table

Humidity Accuracy (SHT30) ±2 %RH
Humidity Accuracy (SHT31) ±2 %RH
Humidity Accuracy (SHT35) ±1.5 %RH
Humidity Repeatability (Low) 0.21 %RH
Humidity Repeatability (Medium) 0.15 %RH
Humidity Repeatability (High) 0.08 %RH
Humidity Resolution 0.01 %RH
Humidity Hysteresis ±0.8 %RH
Humidity Specified Range 0 to 100 %RH
Humidity Response Time 86 s
Humidity Long-term Drift <0.25 %RH/yr
Temperature Accuracy (SHT30) ±0.2 °C
Temperature Accuracy (SHT31) ±0.2 °C
Temperature Accuracy (SHT35) ±0.1 °C
Temperature Repeatability (Low) 0.15 °C
Temperature Repeatability (Medium) 0.08 °C
Temperature Repeatability (High) 0.04 °C
Temperature Resolution 0.01 °C
Temperature Specified Range -40 to 125 °C
Temperature Long-term Drift <0.03 °C/yr
Supply Voltage Range 2.15 V to 5.5 V
I2C Communication Speed Up to 1 MHz
Package Type 8-Pin DFN

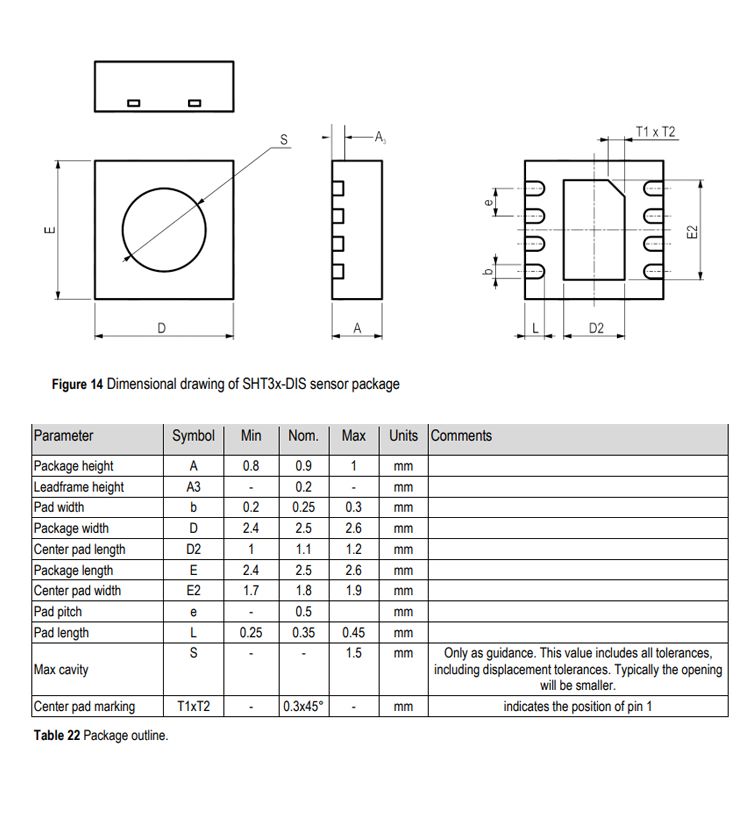

Package Footprint 2.5 x 2.5 mm²
Package Height 0.9 mm

To learn more, please download the PDF.
