SHT40I-AD1B-R2

Product Introduction

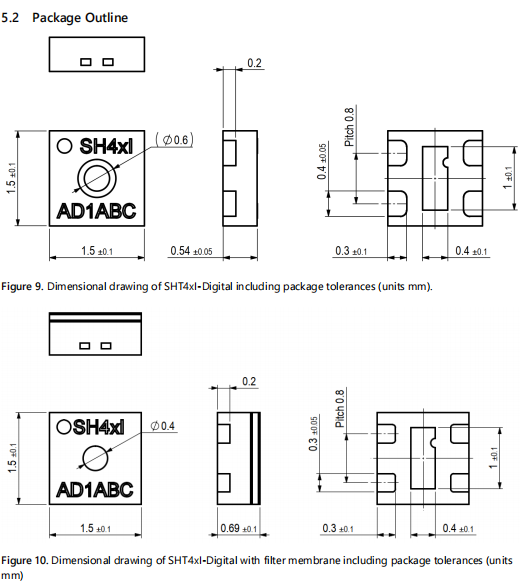

The SHT4xI is a digital, 4th generation, high-accuracy, 16-bit, industrial-grade relative humidity and temperature sensor. It is designed to meet the demanding ESD and robustness requirements of industrial applications. The sensor is fully functional in condensing environments and supports reliable water activity measurement in oil. It features a variable power heater for advanced on-board diagnostics and is available with patented filter membranes for operation in harsh environments. The four-pin dual-flat-no-leads package is suitable for surface mount technology (SMT) processing.

Features

• Accuracies ΔRH = ±2.0 %RH, ΔT = ±0.2 °C
• Supply voltage VDD = 2.3 V…5.5 V
• Average current: 21 µA (at meas. rate 1 Hz)
• I2C FM+, CRC checksum, multiple I2C addresses
• Operating range: 0…100 %RH, −40…125 °C
• Variable power heater
• Fully functional in condensing environment
• Reliable water activity measurement in oil
• NIST traceability
• Mature technology from global market leader
• JEDEC JESD47 qualification, high ESD protection
• Patented protection options

Applications

• Industrial-grade relative humidity and temperature measurement
• Water activity measurement in oil
• Condensing environment monitoring
• Harsh environment sensing with filter membranes
• Advanced on-board diagnostics with integrated heater

Specifications Table

To learn more, please download the PDF.
