SHT45-AD1B-R2

Product Introduction

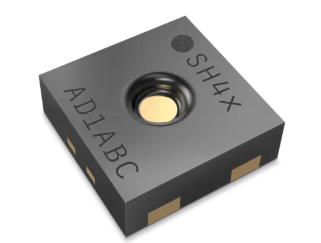

The SHT4x is a 4th generation digital sensor platform designed for measuring relative humidity and temperature with high accuracy and ultra-low power consumption. It features a 16-bit resolution and operates within a supply voltage range of 1.08 V to 3.6 V. The sensor includes a power-trimmed internal heater with three heating levels, enabling reliable operation in demanding environments. The four-pin dual-flat-no-leads package is suitable for surface mount technology (SMT) processing and offers an optional patented on-package PTFE membrane or a removable protection cap. The SHT4x provides an I2C interface with multiple preconfigured addresses and supports CRC checksum for data integrity.

Features

• Relative humidity accuracy: up to ±1.0 %RH
• Operating range: 0…100 %RH, -40…125 °C
• Temperature accuracy: up to ±0.1 °C
• Fully functional in condensing environment
• Supply voltage: 1.08 V … 3.6 V
• Variable power heater
• Average current: 0.4 µA (at meas. rate 1 Hz)
• NIST traceability
• Idle current: 80 nA
• JEDEC JESD47 qualification
• I2C FM+, CRC checksum, multip. I2C addr.
• Mature technology from global market leader
• Patented on-package PTFE membrane
• Removable protection cap

Applications

• HVAC and smart home systems
• Weather stations and environmental monitoring
• Industrial automation and process control
• Automotive climate control
• Medical devices and healthcare equipment
• Data centers and server room monitoring
• Consumer electronics and wearables
• Food storage and transportation monitoring

Specifications Table

To learn more, please download the PDF.
