TGS2600

Product Introduction

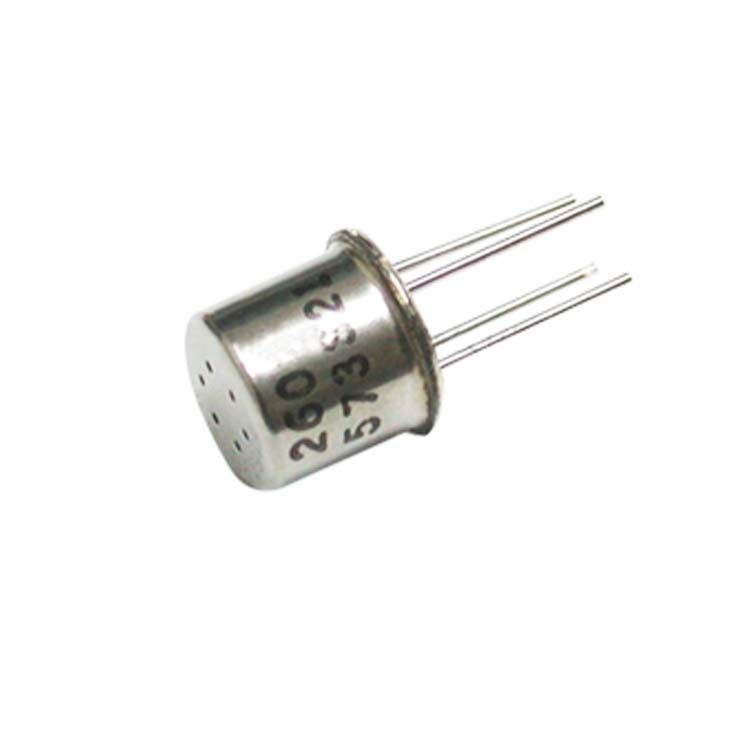

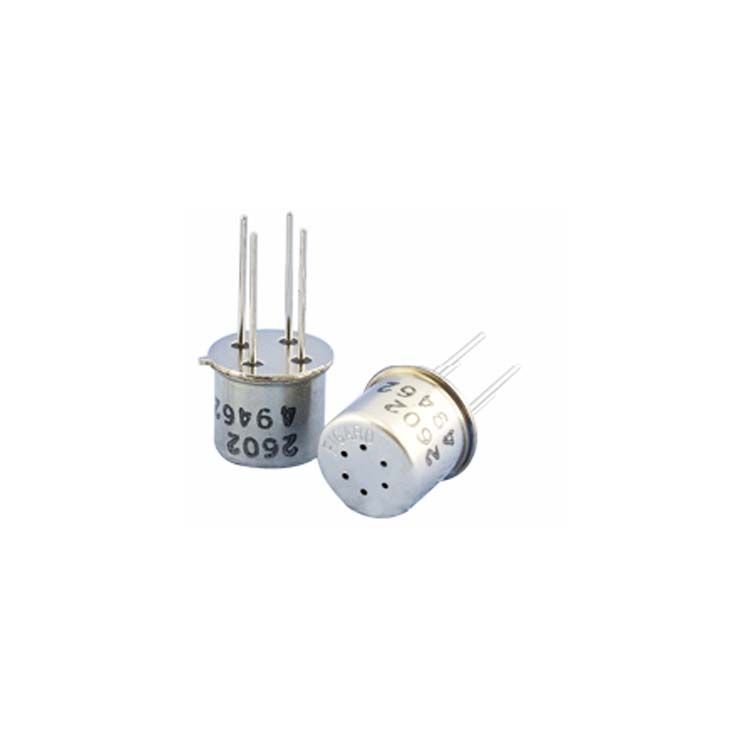

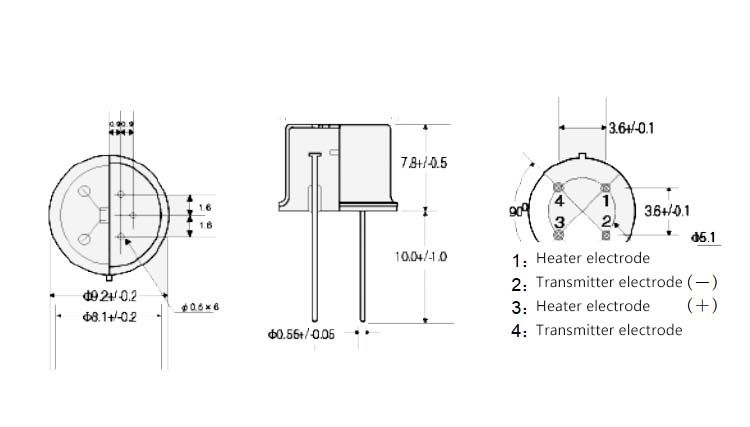

The TGS 2600 is a gas sensor designed for the detection of air contaminants. The sensing element consists of a metal oxide semiconductor layer formed on an alumina substrate of a sensing chip together with an integrated heater. In the presence of a detectable gas, the sensor's conductivity increases depending on the gas concentration in the air. A simple electrical circuit can convert the change in conductivity to an output signal which corresponds to the gas concentration. The TGS 2600 has high sensitivity to low concentrations of gaseous air contaminants such as hydrogen and carbon monoxide, which exist in cigarette smoke. Due to miniaturization of the sensing chip, the TGS 2600 requires a heater current of only 42mA and is housed in a standard TO-5 package.

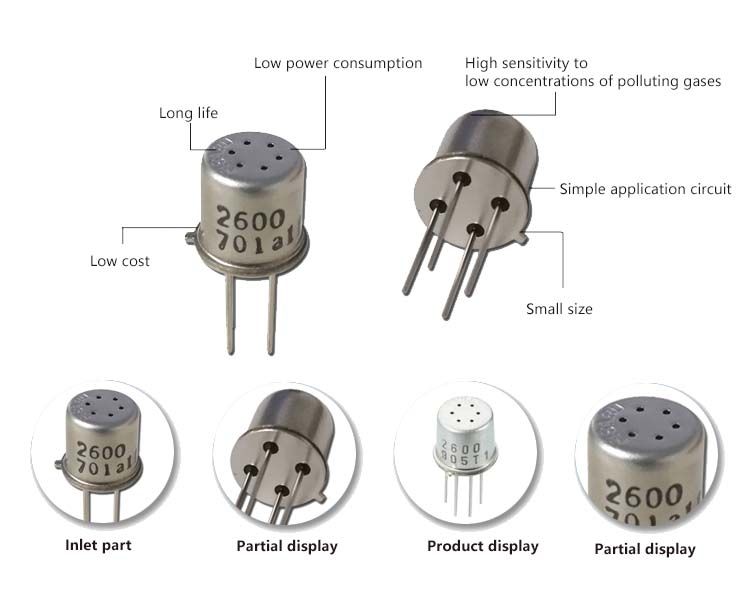

Features

• Low power consumption
• High sensitivity to gaseous air contaminants
• Long life and low cost
• Uses simple electrical circuit
• Small size

Applications

• Air cleaners
• Ventilation control
• Air quality monitors

Specifications Table

To learn more, please download the PDF.
