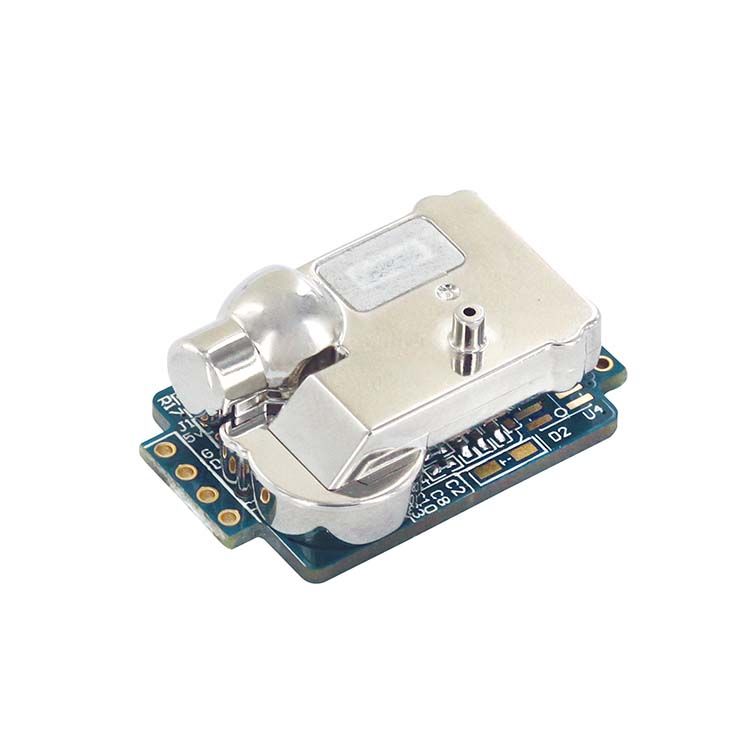

ZyTemp ZG09S Dual-beam NDIR CO2 Sensor

Specifications

Product Introduction

The ZG09S carbon dioxide module is a high-performance NDIR CO2 sensor designed for accurate and reliable measurement of carbon dioxide concentration in various environments. It supports multiple output formats including UART, RS485, I2C, PWM, and DAC, making it versatile for integration into a wide range of systems. The module is suitable for indoor air quality monitoring, HVAC control, and industrial applications.

Features

Dual-beam NDIR sensor technology
Measurement range from 0 to 10,000 ppm
Supports diffusion and flow-through gas sampling
Multiple output interfaces: UART, RS485, I2C, PWM, DAC
2-second measurement cycle
High accuracy and low noise
Long-term stability and reliability

Applications

Indoor air quality monitoring
HVAC systems
Greenhouse and agricultural monitoring
Industrial safety and process control
Smart home and building automation

Specifications Table

CO2 Measurement Range	0-10,000 ppm
Measurement Cycle	2 seconds
CO2 Accuracy	±(50 ppm + 3% of reading)
CO2 RMS Noise	<10 ppm @ 400 ppm, <20 ppm @ 1,000 ppm
CO2 Repeatability	±20 ppm
Response Time	Approximately 1 minute (diffusion type, 90% of final value)

To learn more, please download the PDF.
