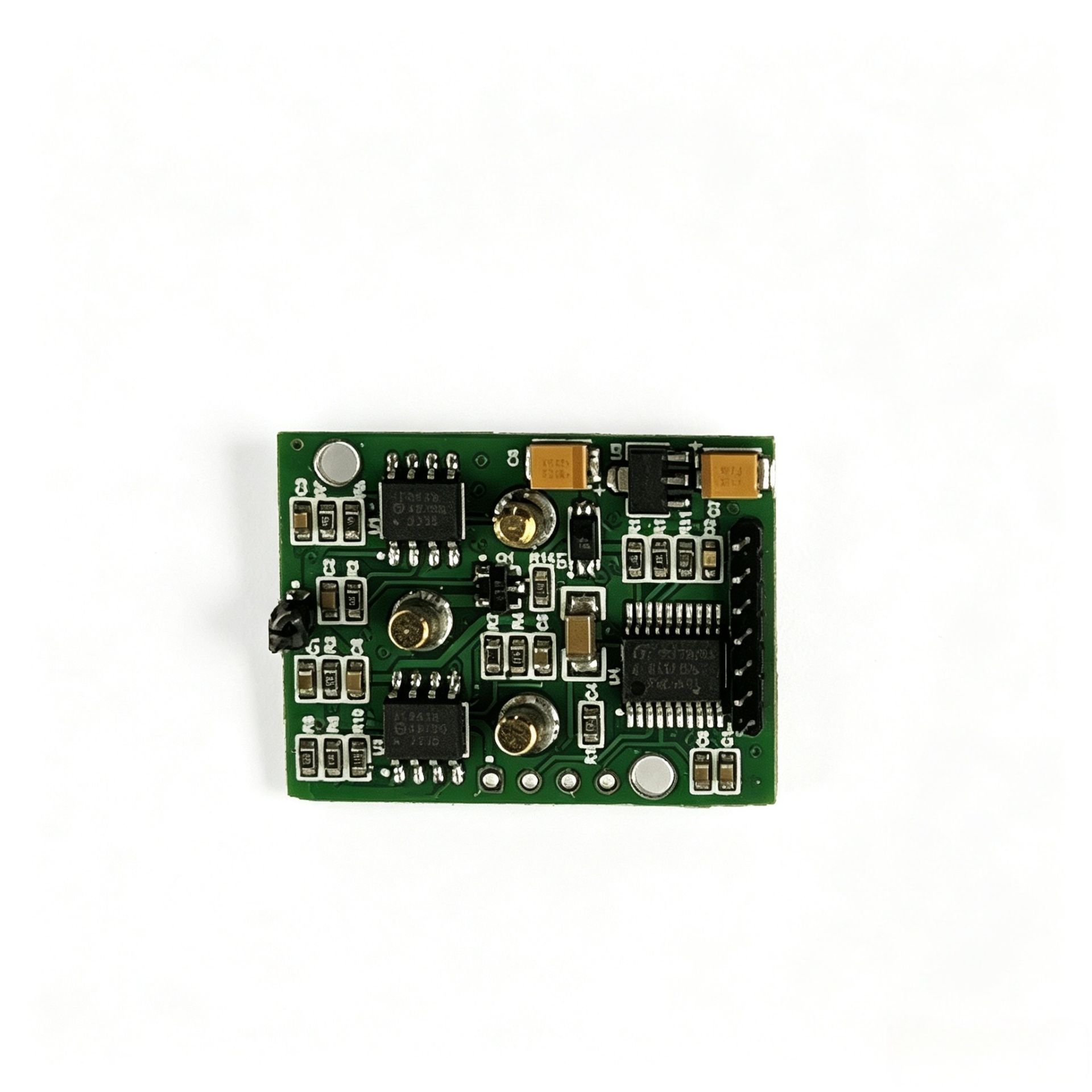

ZX-MK3-O2

Overview:
The ZX-MK3-O2 is a smart electrochemical oxygen detection module from SENSEIOT’s ZX-MK3 series. It employs a three-electrode electrochemical sensing principle and does not require prolonged preheating, ensuring stable and reliable measurements. The module integrates signal conditioning circuits and temperature compensation circuits, and is factory-calibrated as a complete unit.
Main characteristics:
The electrochemical detection method does not require preheating and is reliable and stable.
Detection range: 0% to 30%.
l Resolution accuracy: 0.1%.
The temperature range of use is broad: –20 to 45°C.
Lasts for more than 1 year.
Power supply: 3.3V or 5VDC; IIC output, TTL serial port output, slave mode.
It’s affordable and suitable for extensive use.
Application：
Hotels, exhibition halls, hospitals, shopping centers, restaurants, airports, train stations, entertainment venues, movie theaters, and other public areas.
l Homes, villas, office buildings, conference rooms, classrooms, and other such venues.
Various industrial applications such as factories, workshops, greenhouses, and clean rooms.
Specification:
