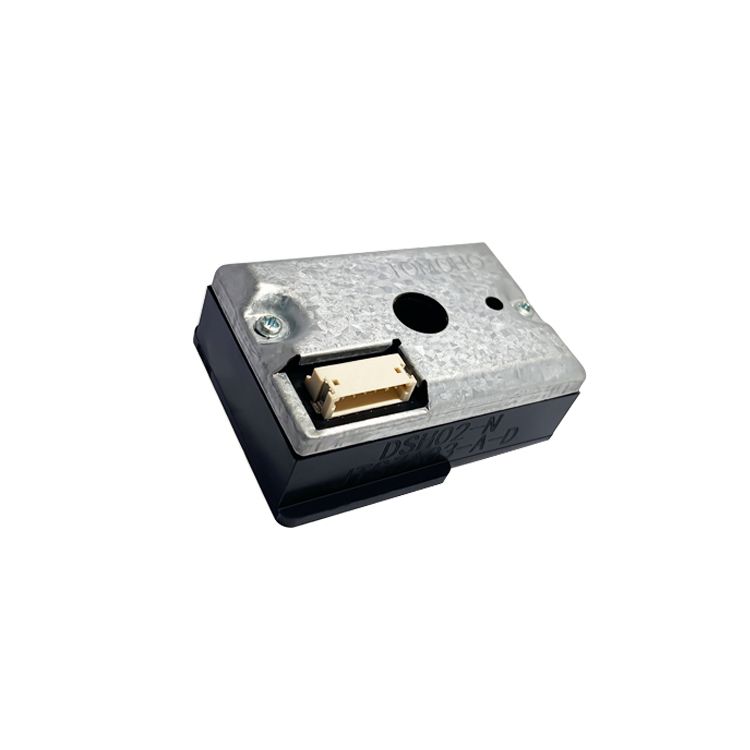

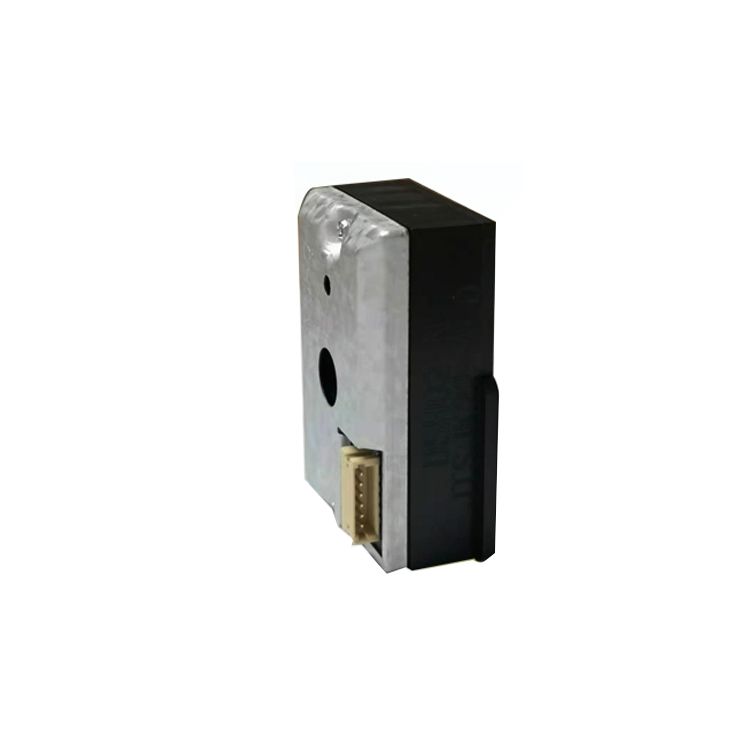

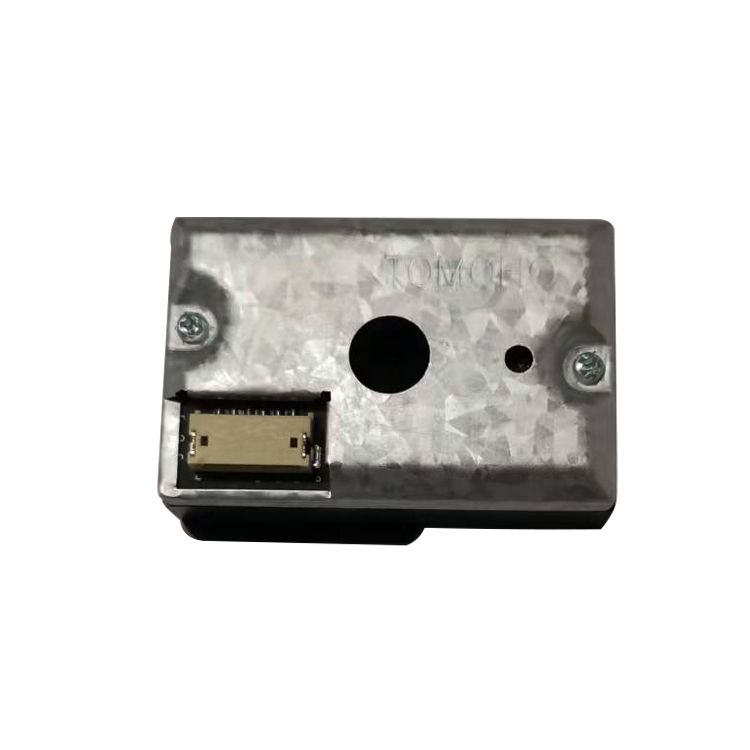

TOMOHO DSH02 Dust Sensor

规格

Product Introduction

The dust sensor utilizes the principle of optical illumination to measure the concentration of dust in the detection range through the conversion of the light path and the circuit.

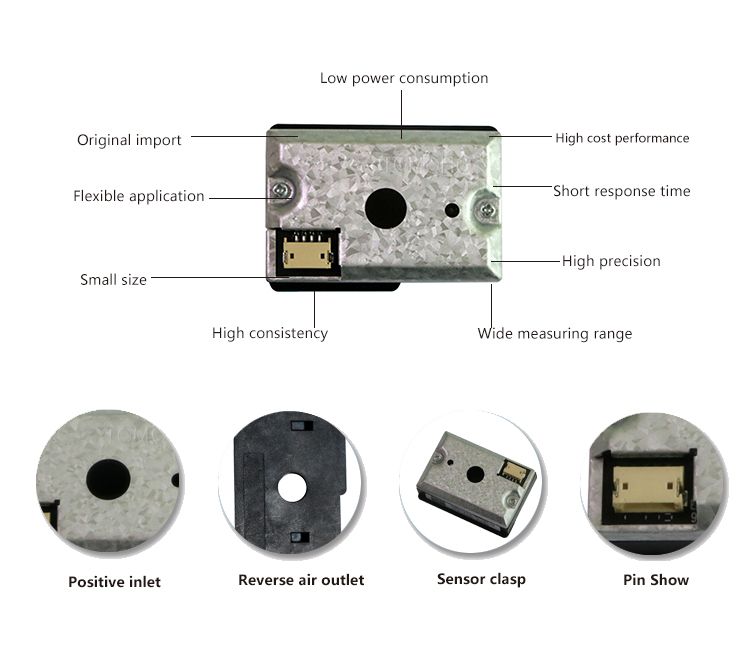

Features

  • Optical illumination principle for dust concentration measurement
  • Light path and circuit conversion for detection
  • Designed for measuring equipment, household appliances, and automotive electronic parts
  • Compact and reliable for consumer goods applications

Applications

  • Measuring equipment
  • Household appliances
  • Automotive electronic parts

Specifications Table

Operating Voltage

Parameter Value
Operating Voltage 5V±0.2V ( Power ripple is less than 50mV)
Operating Current ≤15mA ( Transient current 300mA)
Operating Temperature  -10℃～+65℃
Operating Humidity  0-95%RH No condensation
Measuring Range PM0.3～PM10
Concentration Output  0～600μg/m³
Accuracy ≤±25% @ Voltage 5.0V

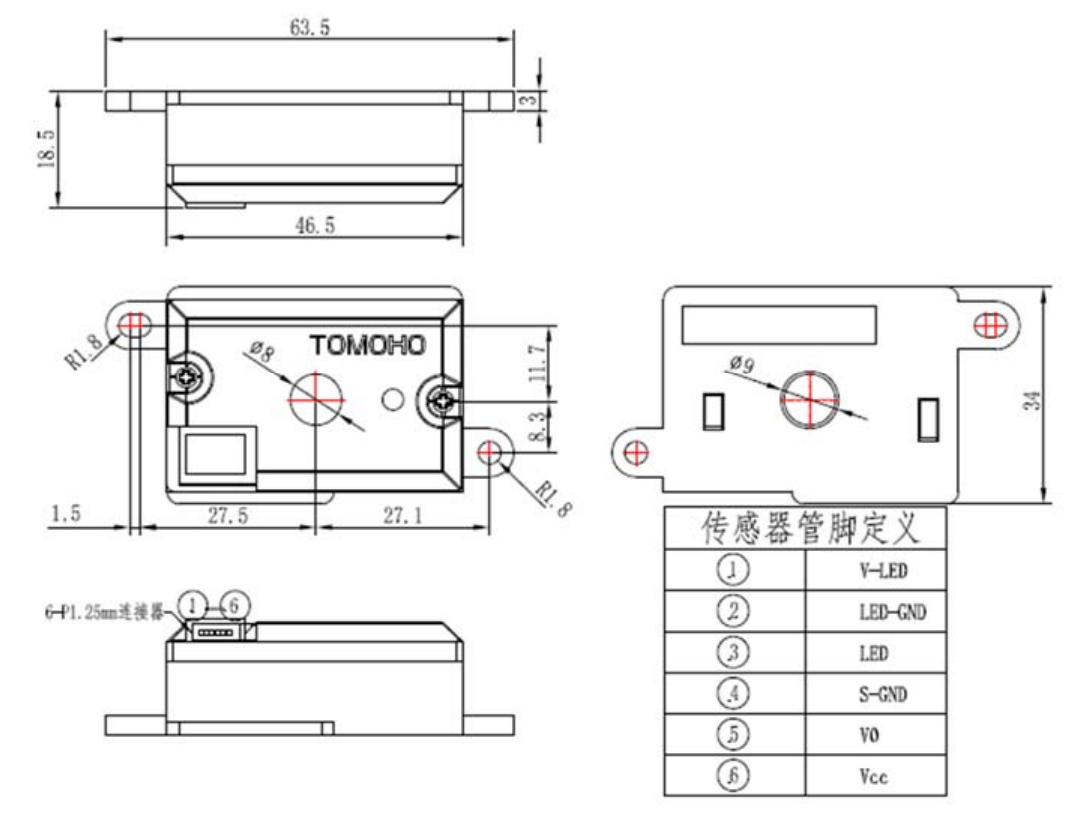

Interface ZH1.5mm-WT-6P Connector
Life-time 5 years since produced

To learn more, please download the PDF.
