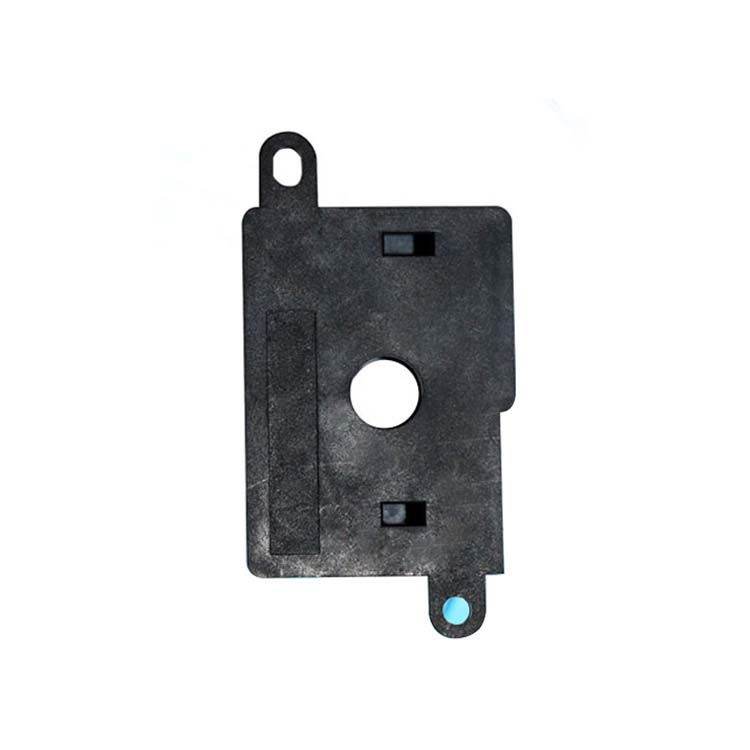

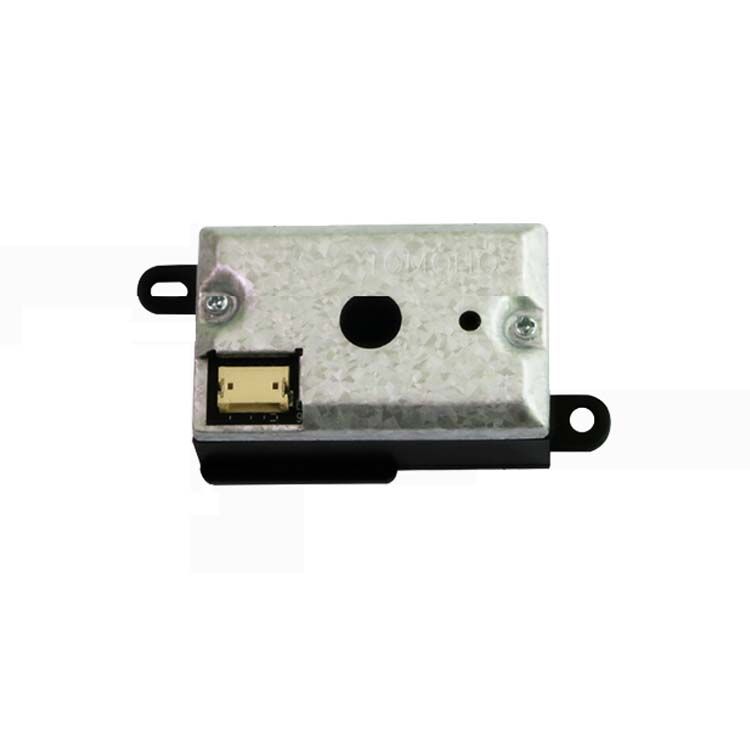

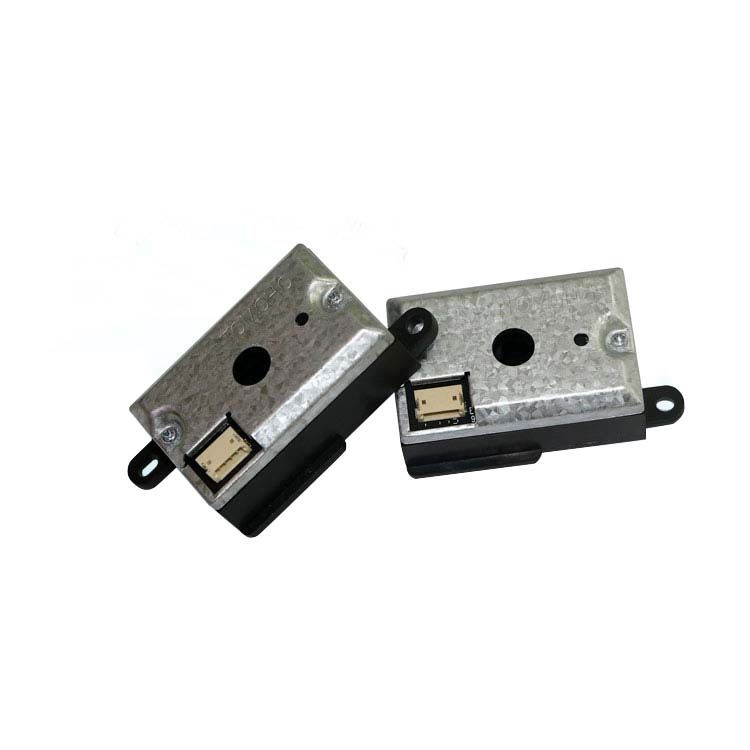

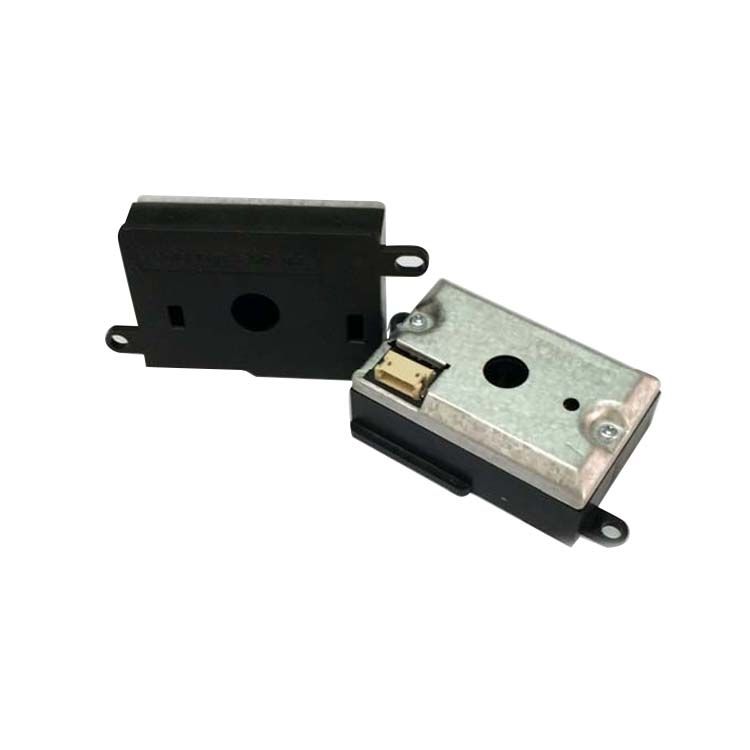

Name: DSHD01
Brand: TOMOHO
SKU: DSHD01
Availability: OutOfStock

规格

Product Introduction

This dust sensor product utilizes the principle of optical irradiation. Through the conversion of the optical path and circuit, it measures the dust concentration within the detection range. It can be directly used for UART communication with a microcontroller. It features a compact size, high precision, low power consumption, wide measurement range, short response time, and convenient application.

Features

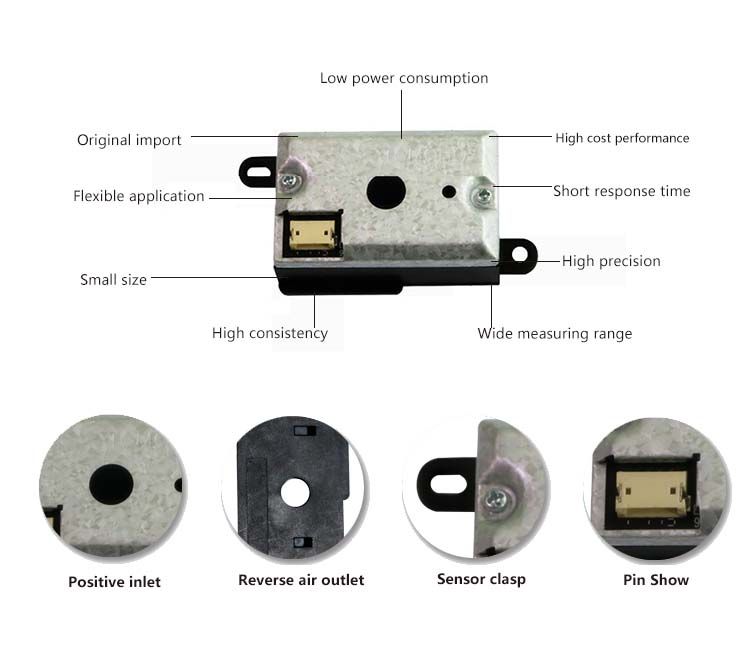

Compact size and high precision
Low power consumption
Wide measurement range
Short response time
UART communication interface
Energy-saving standby mode
Automatic dust accumulation compensation function
Long product lifespan

Applications

Air conditioners
Air purifiers
Dehumidifiers
Portable detectors
Other household appliances
Automotive air purification
Fresh air systems
Smart detectors

Specifications Table

Working Voltage	5V±0.2V
Working Current	≤15mA
Standby Current	≤5mA
Working Temperature	-20℃～+75℃
Working Humidity	0-95%RH
Storage Temperature	-40℃～+85℃
Measurement Range	PM0.3～PM10
Output Concentration (Digital)	5～2500μg/m³
Output Concentration (Analog)	3～800μg/m³
Output Concentration (Temp/Humidity)	5～1000μg/m³
Dust Accuracy (0-75μg/m³)	≤±12μg/m³ @5.0V 10～30℃ 40%～60%RH
Dust Accuracy (Above 75μg/m³)	≤±15% @5.0V 10～30℃ 40%～60%RH
Temperature Accuracy	≤±0.6℃@5～60℃; ≤±1℃@-10℃～+65℃
Humidity Accuracy	≤±5%RH @25℃ 20～80%RH; ≤±8%RH @5℃～45℃ 0～95%RH
Interface	ZH1.5mm-WT-4P Connector
Output Method	UART / PWM
Output Ratio	1:1 / 0.4:1
Fan Type	Sleeve Bearing
Fan Working Voltage	DC5V±0.5V
Fan Working Current	≤100mA
Fan Speed	3000 r/min
Fan Airflow	0.96CFM
Fan Noise	≤23dB
Fan Lifespan	20000H (25℃ 65%RH)
Fan Working Temperature	-10～60℃
Fan Storage Temperature	-20～65℃

To learn more, please download the PDF.
