TE HTU20D Digital Humidity & Temperature Sensor

规格

Product Introduction

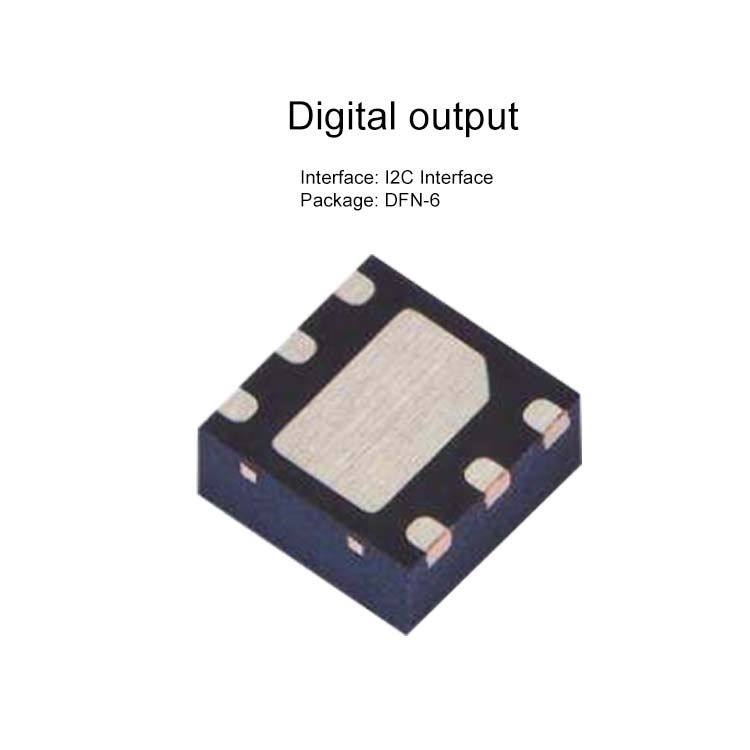

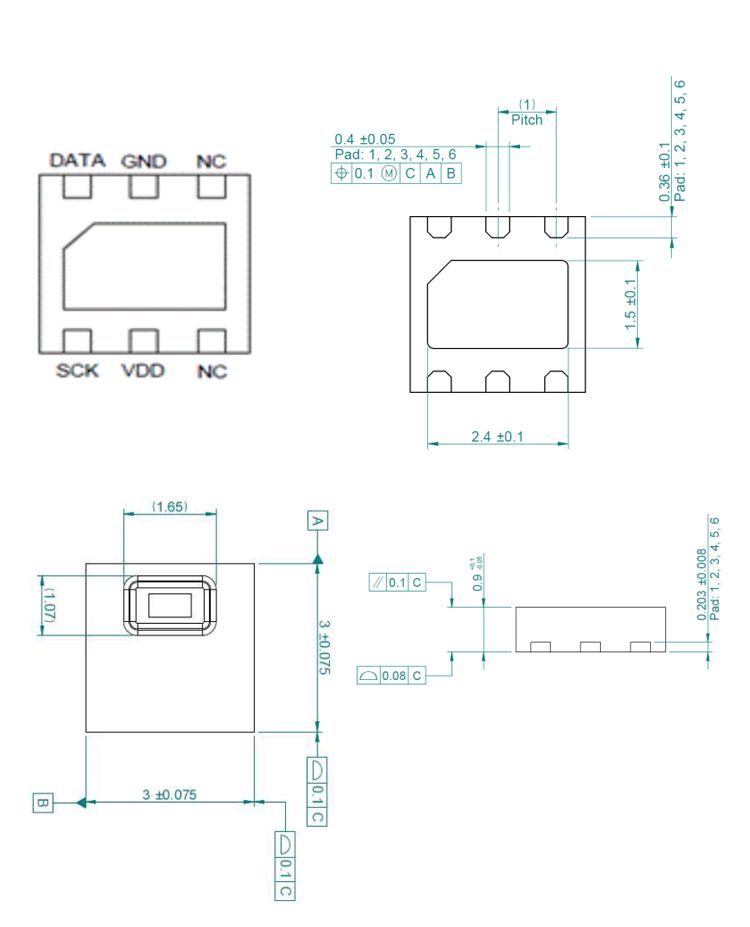

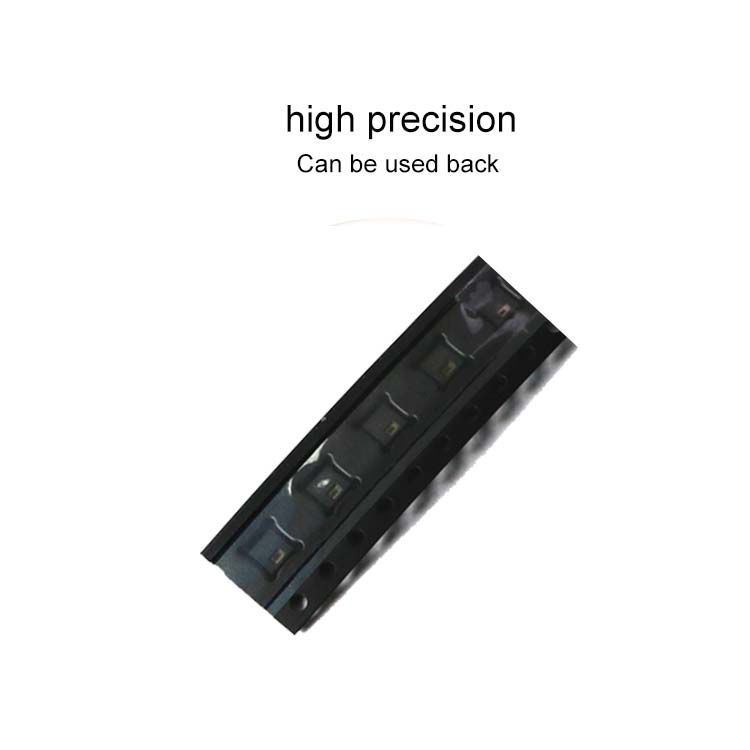

The HTU20D(F) is a digital relative humidity sensor with temperature output, housed in a reflow solderable Dual Flat No leads (DFN) package with a small 3 x 3 x 0.9 mm footprint. This sensor provides calibrated, linearized signals in digital I²C format. Every sensor is individually calibrated and tested. An optional PTFE filter/membrane protects the sensor against dust, water immersion, and contamination by particles while preserving a high response time.

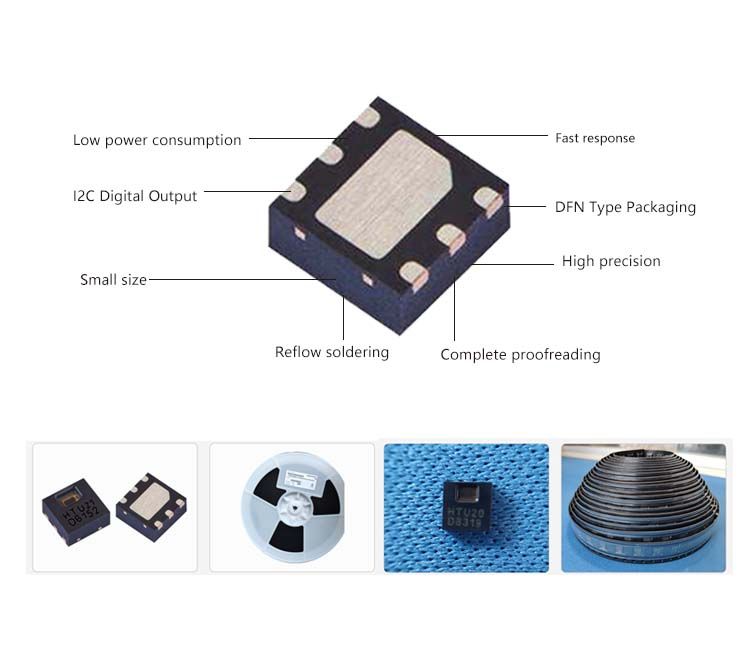

Features

  • DFN type package
  • Relative Humidity and Temperature Digital Output, I²C interface
  • Fully calibrated
  • Lead free sensor, reflow solderable
  • Low power consumption
  • Fast response time
  • Full interchangeability with no calibration required in standard conditions
  • Instantaneous desaturation after long periods in saturation phase
  • Compatible with automatized assembly processes, including Pb free and reflow processes
  • Individual marking for compliance to stringent traceability requirements

Applications

  • Home Appliance
  • Medical
  • Printers
  • Humidifier
  • Multimedia: Smartphone, Tablet, …

Specifications Table

Parameter Value
Storage Temperature -40 to 125 °C
Supply Voltage (Peak) 3.8V Vdc
Humidity Operating Range 0 to 100 %RH
Temperature Operating Range -40 to +125 °C
VDD to GND -0.3 to 3.6V V
Digital I/O pins (DATA/SCK) to VDD -0.3 to VDD+0.3 V
Input current on any pin -10 to +10 mA
Voltage Supply 1.5 to 3.6 V
Current consumption Sleep mode 0.02 to 0.14 µA
Current consumption Measuring 300 to 500 µA
Power Dissipation Sleep mode 0.06 to 0.5 µW
Power Dissipation Average 8bit 2.7 µW
Communication digital 2-wire interface, I²C protocol
Heater 5.5mW/ΔT=+0.5-1.5°C
Storage -40°C/125°C
Resolution 12 bits 0.04 %RH
Resolution 8 bits 0.7 %RH
Humidity Operating Range 0 to 100 %RH
Relative Humidity Accuracy typ @25°C (20%RH to 80%RH) ±2 %RH
Relative Humidity Accuracy max @25°C (20%RH to 80%RH) See graph 1 %RH
Replacement fully interchangeable
Temperature coefficient (from 0°C to 80°C) -0.15 %RH/°C
Humidity Hysteresis ±1 %RH
Measuring Time 12 bits 14 to 16 ms
Measuring Time 11 bits 7 to 8 ms
Measuring Time 10 bits 4 to 5 ms
Measuring Time 8 bits 2 to 3 ms
PSRR ±10 LSB
Recovery time after 150 hours of condensation 10 s
Long term drift 0.5 %RH/yr
Response Time (at 63% of signal) from 33 to 75%RH 5 to 10 s
Resolution 14 bit 0.01 °C
Resolution 12 bit 0.04 °C
Temperature Operating Range -40 to +125 °C
Temperature Accuracy typ @25°C ±0.3 °C
Temperature Accuracy max @25°C See graph 2 °C
Replacement fully interchangeable
Measuring time 14 bit 44 to 50 ms
Measuring time 13 bit 22 to 25 ms
Measuring time 12 bit 11 to 13 ms
Measuring time 11 bit 6 to 7 ms
PSSR ±25 LSB
Long term drift 0.04 °C/yr
Response Time (at 63% of signal) from 15°C to 45°C 10 s

To learn more, please download the PDF.
