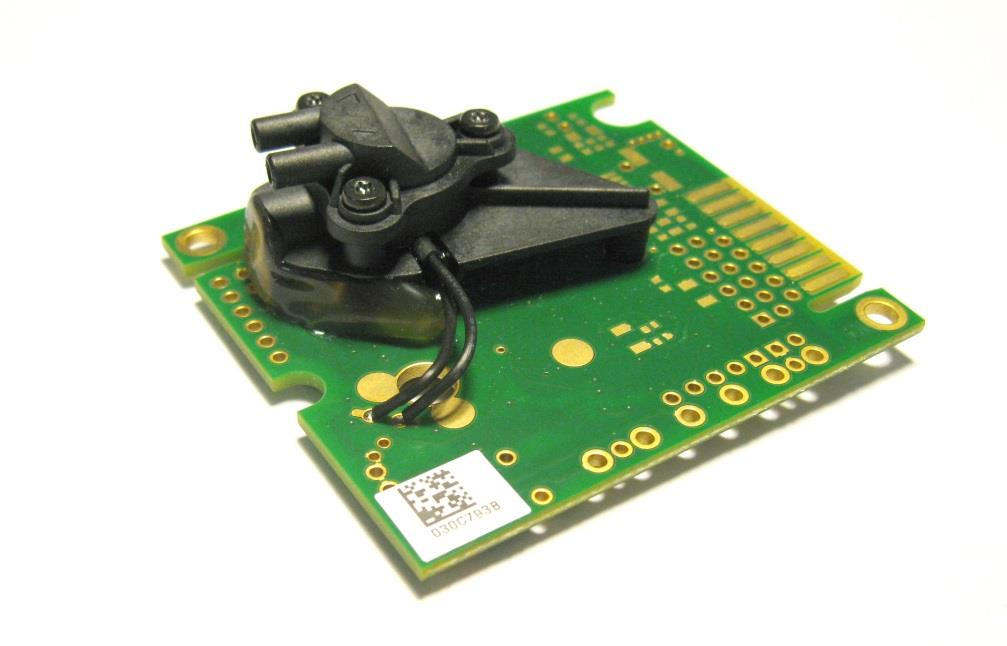

SenseAir K33 NDIR CO2 Sensor

规格

Product Introduction

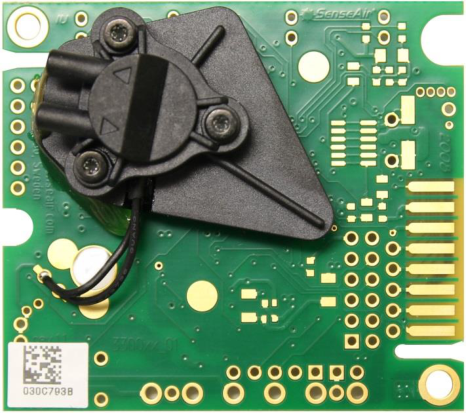

The CO Engine ICB-F is a sensor module designed for bio applications with a measurement range of 0 to 2 vol% CO2. It is built on the CO Engine K33 platform, which is a low power OEM module intended for built-in applications in a host apparatus or as a standalone CO2 transmitter/switch module. The sensor has the same dimensions and attachment points as K30 platform based sensors.

Features

  • Measurement range 0 to 2 vol% CO2
  • Low power OEM module design
  • Compatible with K30 platform dimensions and attachment points

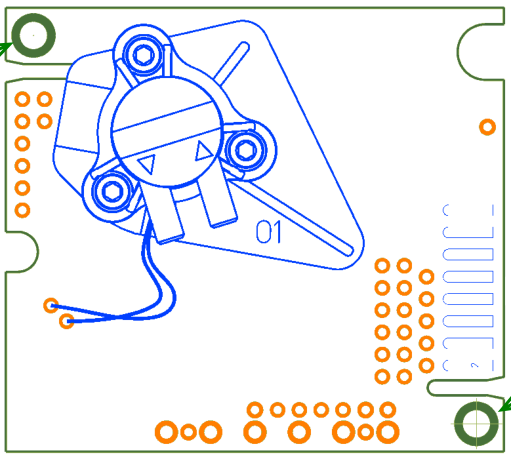

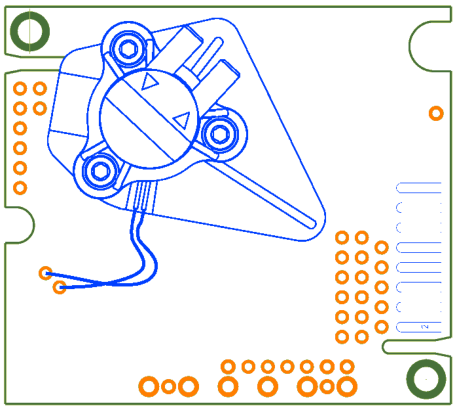

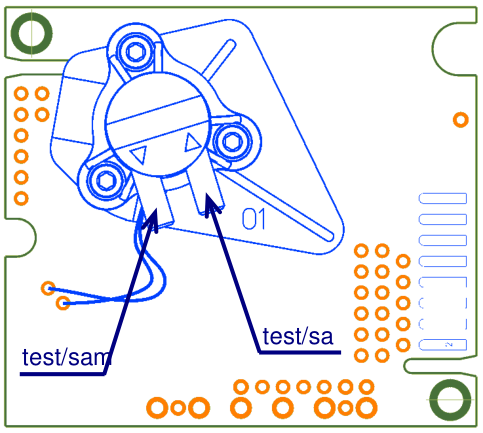

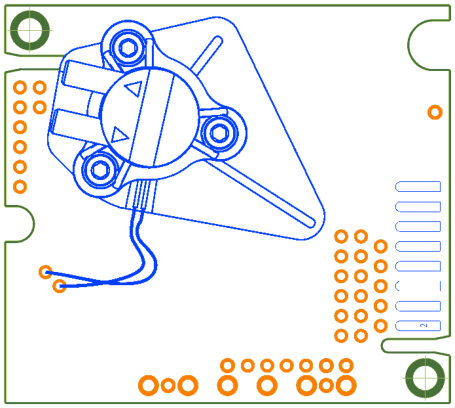

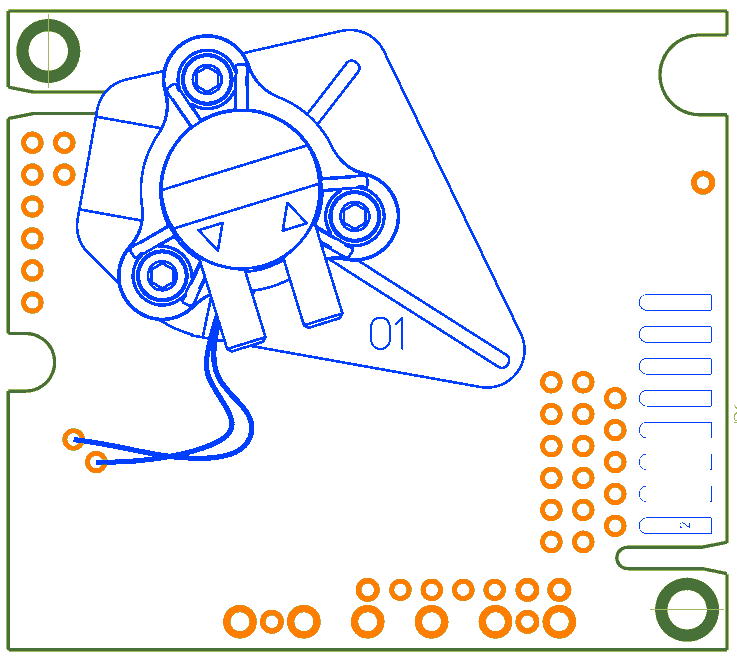

  • Available in tube in/out modification with different orientations in steps of 120 degrees
  • Multiple communication interfaces including UART and I2C
  • Digital and analog output options
  • Digital switch inputs for calibration forcing
  • ABC algorithm support for automatic baseline correction

Applications

  • Bio applications requiring CO2 measurement
  • Built-in applications in host apparatus
  • Standalone CO2 transmitter/switch modules
  • Environmental monitoring systems
  • Indoor air quality monitoring

Specifications Table

Measurement Range 0 to 2 vol% CO2
Power Supply Voltage 5 to 14V, stabilized to within 10%
DVCC Output 3.3V, series resistance 10R, available current 12mA
UART Communication CMOS physical layer, ModBus protocol
UART_RxD Input High Level 2.1V min
UART_RxD Input Low Level 0.8V max
UART_TxD Output High Level 2.3V min (assuming 3.3V DVCC)
UART_TxD Output Low Level 0.75V max
I2C Communication Pull-up to DVCC = 3.3V
OUT1 Open Collector Series resistance 120R, max sink current 40mA
OUT2 Analog Output 0~5V, buffered linear output, resolution 5mV

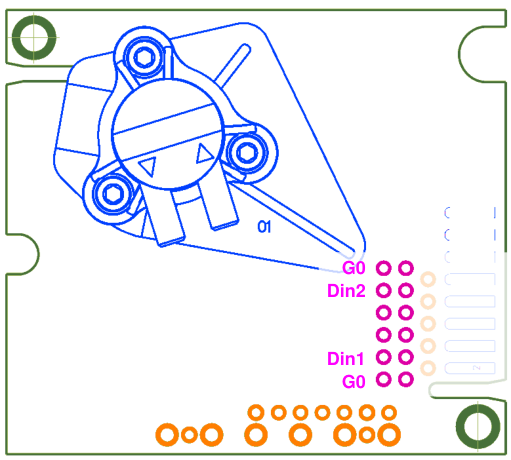

Digital Inputs Din0-Din2 Pull-up 56k to DVCC 3.3V
Din3 R/T control line for UART connection to RS485 driver
Ground Connections AGND and DGND connected internally to G0

To learn more, please download the PDF.
