PLANTOWER PMS1003 PM2.5 PM10 Sensor Sensor

规格

Product Introduction

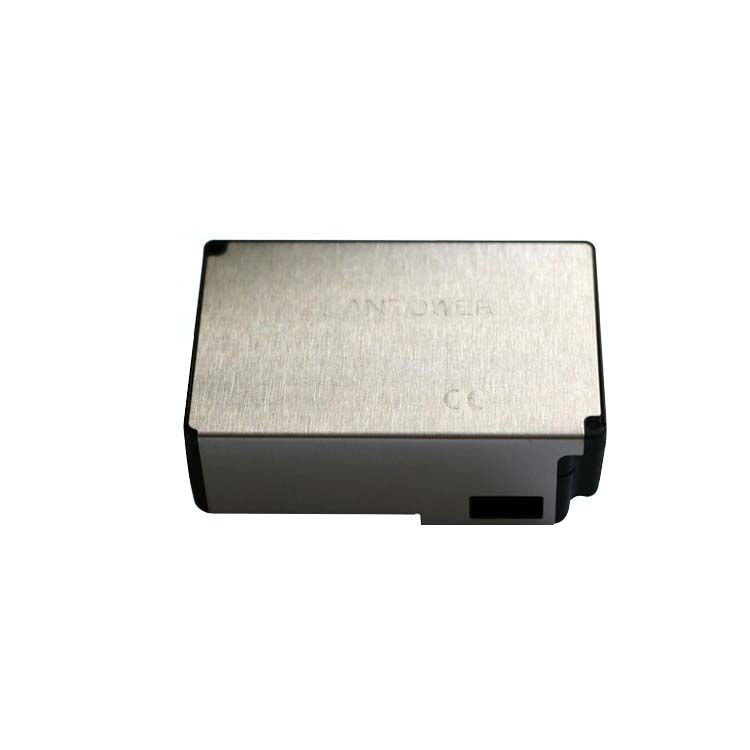

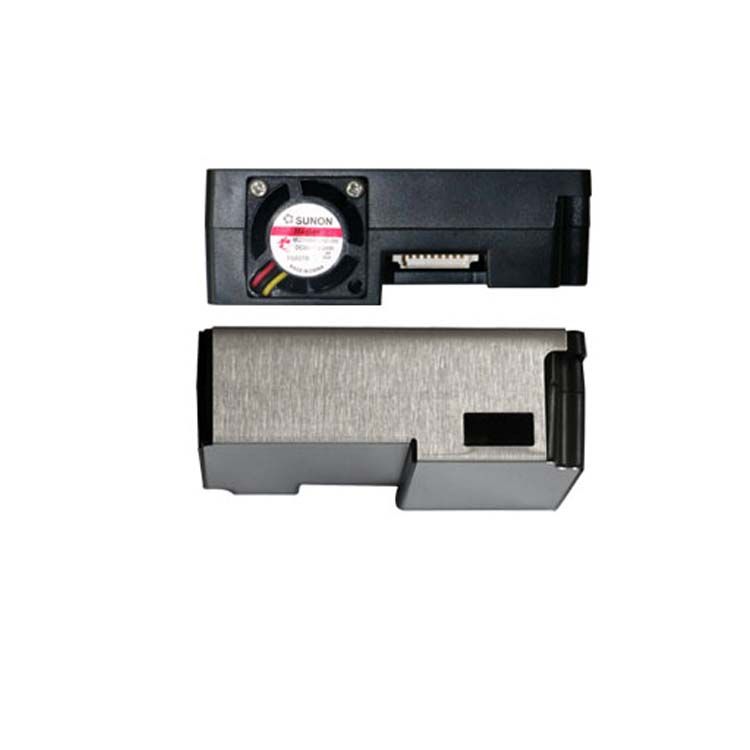

PMS1003 is a digital universal particle sensor based on the laser scattering principle. It continuously collects and calculates the number of suspended particles of different sizes in the air per unit volume, i.e., the particle concentration distribution, and then converts it into mass concentration, outputting through a universal digital interface. This sensor can be embedded into various instruments or environmental improvement devices related to airborne suspended particle concentration, providing timely and accurate concentration data.

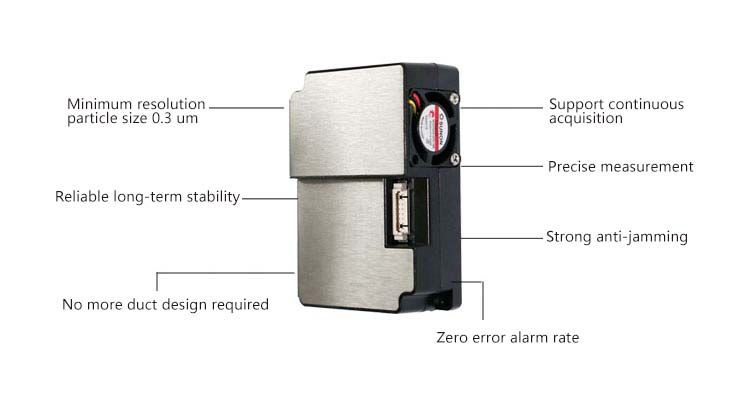

Features

  • Laser scattering principle for precise measurement
  • Zero false alarm rate
  • Real-time response and support for continuous collection
  • Minimum detectable particle size 0.3µm

Applications

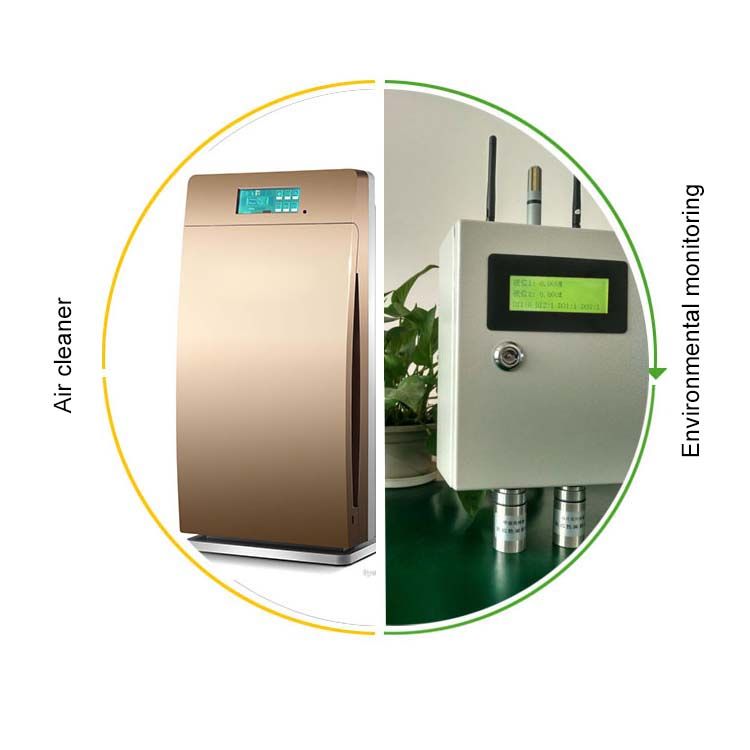

  • Air quality monitoring instruments
  • Air purifiers and environmental improvement equipment
  • HVAC systems and ventilation control
  • Industrial dust monitoring
  • Portable particle counters

Specifications Table

Particle measurement range 0.3~1.0; 1.0~2.5; 2.5~10 µm
Particle counting efficiency 50%@0.3 µm, 98%@>=0.5 µm
PM2.5 effective measurement range 0~500 µg/m³
PM2.5 maximum measurement range ≥1000 µg/m³
PM2.5 resolution 1 µg/m³
PM2.5 consistency ±10%@100~500 µg/m³, ±10 µg/m³@0~100 µg/m³
Standard volume 0.1 L
Single response time <1 s
Comprehensive response time <10 s
DC supply voltage Typ: 5.0 V, Min: 4.5 V, Max: 5.5 V
Operating current ≤100 mA
Standby current ≤200 µA
Data interface level L<0.8 @3.3 V, H>2.7 @3.3 V
Operating temperature range -10~+60 °C
Operating humidity range 0~95% (non-condensing)
Storage temperature range -40~+80 °C
Maximum dimensions 65×42×23 mm

To learn more, please download the PDF.
