Name: PMS3003
Brand: PLANTOWER
SKU: PMS3003
Availability: OutOfStock

规格

Product Introduction

PMS3003 is a kind of digital and universal particle concentration sensor, which can be used to obtain the number of suspended particles in the air, i.e. the concentration of particles, and output them in the form of digital interface. This sensor can be inserted into variable instruments related to the concentration of suspended particles in the air or other environmental improvement equipments to provide correct concentration data in time.

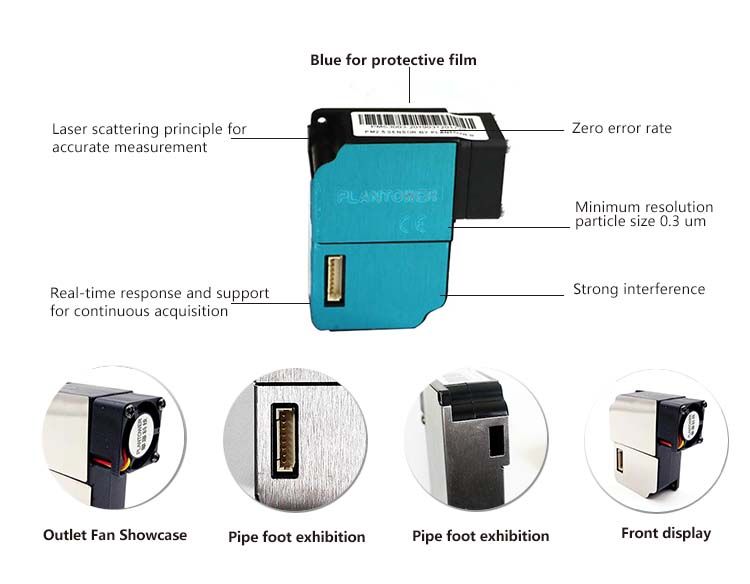

Features

Zero false alarm rate
Real-time response
Correct data
Minimum distinguishable particle diameter: 0.3 micrometer

Applications

Air quality monitoring instruments
Environmental improvement equipment
Particulate concentration measurement systems

Specifications Table

Range of measurement	0.3~1.0; 1.0~2.5; 2.5~10 Micrometer (μm)
Counting Efficiency	50%@0.3μm 98%@>=0.5μm
Effective Range (PM2.5 standard)	0~500 μg/m³
Maximum Range (PM2.5 standard)*	≥1000 μg/m³
Resolution	1 μg/m³
Maximum Consistency Error (PM2.5 standard data)*	±10%@100~500μg/m³ ±10μg/m³@0~100μg/m³
Standard Volume	0.1 Litre (L)
Single Response Time	＜1 Second (s)
Total Response Time	≤10 Second (s)
DC Power Supply	Typ:5.0 Min:4.5 Max: 5.5 Volt (V)
Active Current	≤100 Milliampere (mA)
Standby Current	≤200 Microampere (μA)
Interface Level	L <0.8 @3.3 H >2.7@3.3 Volt (V)
Working Temperature Range	-10~+60 ℃
Working Humidity Range	0~99%
Storage Temperature Range	-40~+80 ℃
MTTF	≥3 Year (Y)
Physical Size	50×43×21 Millimeter (mm)

To learn more, please download the PDF.
