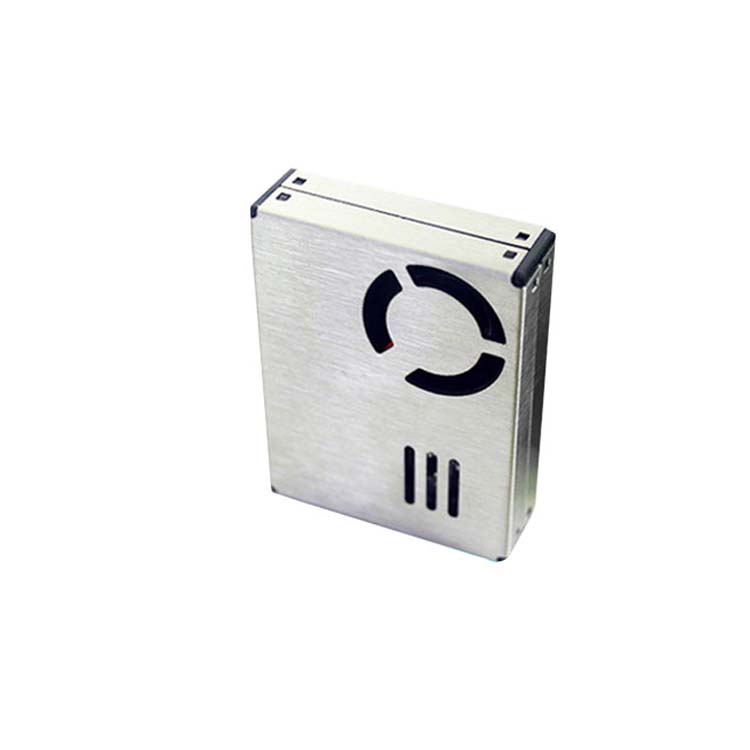

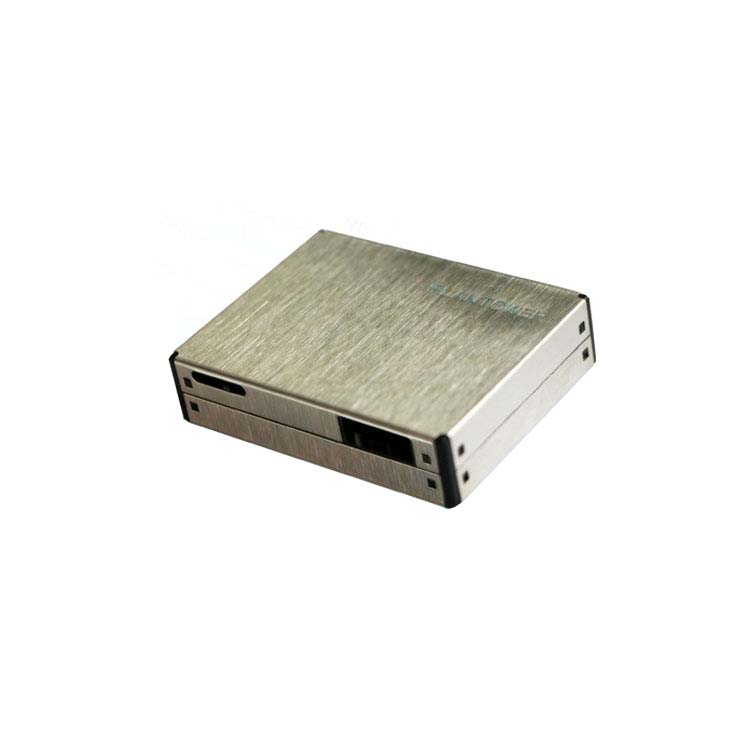

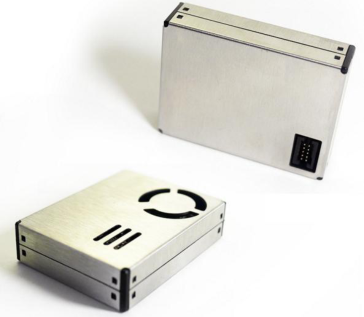

Air Quality Sensor PLANTOWER PMS7003M Digital Particulate Matter Sensor

规格

Product Introduction

PMS7003M is a digital and universal particle concentration sensor, which can be used to obtain the number of suspended particles in the air, i.e. the concentration of particles, and output them in the form of digital interface. This sensor can be inserted into variable instruments related to the concentration of suspended particles in the air or other environmental improvement equipments to provide correct concentration data in time.

Features

  • Zero false alarm rate
  • Real-time response
  • Correct data
  • Minimum distinguishable particle diameter: 0.3 micrometer
  • High anti-interference performance because of the patent structure of six sides shielding

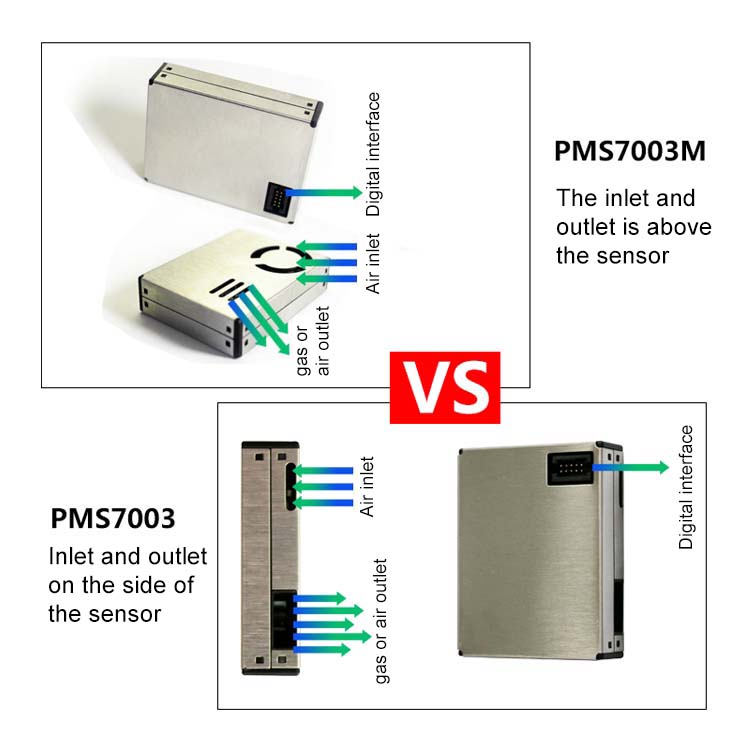

  • Optional direction of air inlet and outlet in order to adapt the different design
  • Very Slim

Applications

  • Air quality monitoring instruments
  • Environmental improvement equipment
  • HVAC systems
  • Portable particle counters

Specifications Table

Range of measurement 0.3~1.0; 1.0~2.5; 2.5~10 Micrometer (μm)
Counting Efficiency 50%@0.3μm 98%@>=0.5μm
Effective Range (PM2.5 standard) 0~500 μg/m³
Maximum Range (PM2.5 standard)* ≥1000 μg/m³
Resolution 1 μg/m³

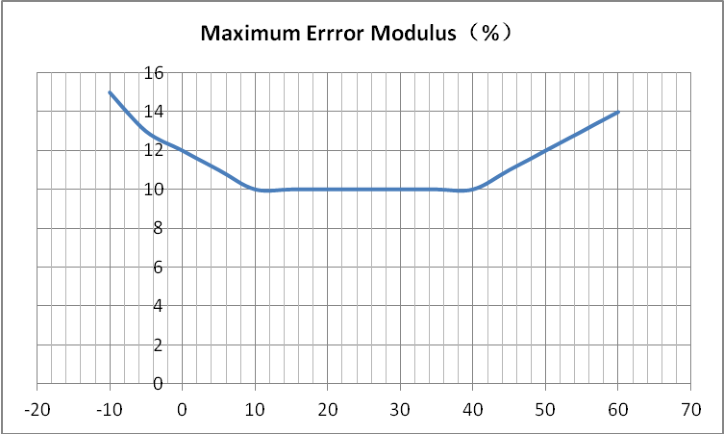

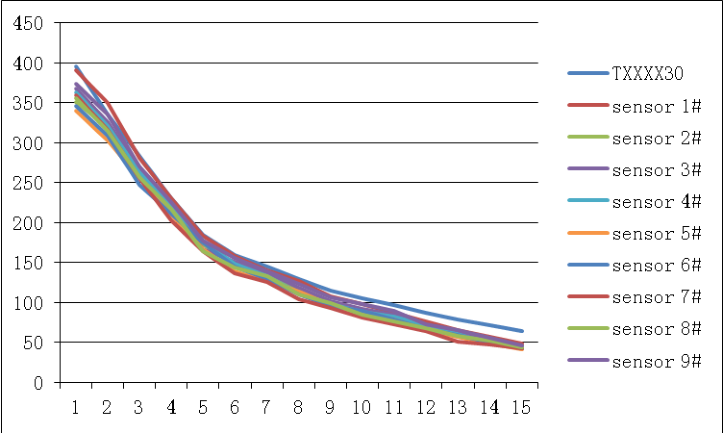

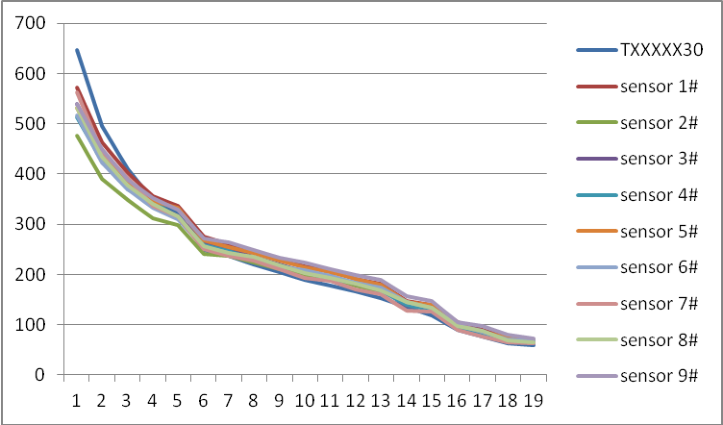

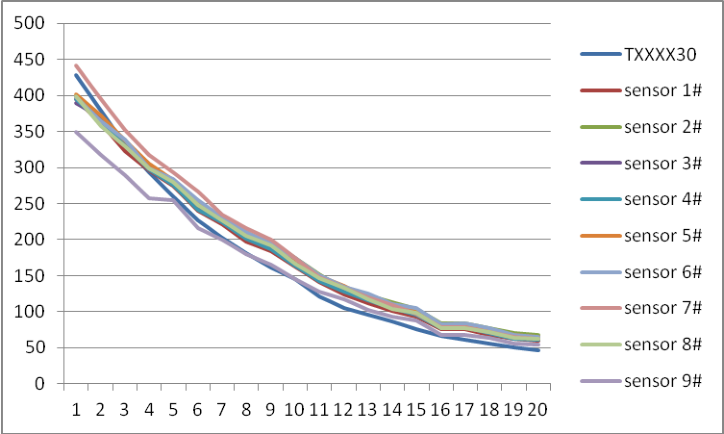

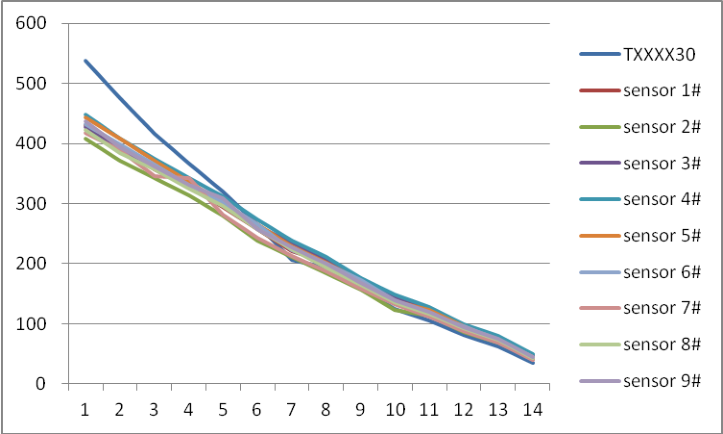

Maximum Consistency Error (PM2.5 standard data)* ±10%@100~500μg/m³ ±10μg/m³@0~100μg/m³
Standard Volume 0.1 Litre (L)
Single Response Time ＜1 Second (s)
Total Response Time ≤10 Second (s)
DC Power Supply Typ:5.0 Min:4.5 Max: 5.5 Volt (V)
Active Current ≤100 Milliampere (mA)
Standby Current ≤200 Microampere (μA)
Interface Level L <0.8 @3.3 H >2.7@3.3 Volt (V)
Working Temperature Range -10~+60 ℃
Working Humidity Range 0~99%
Storage Temperature Range -40~+80 ℃

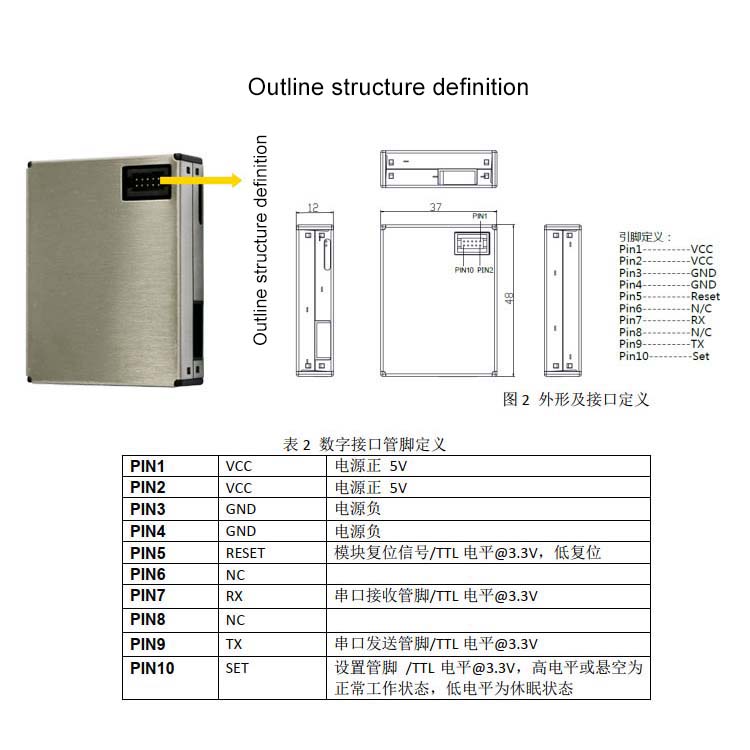

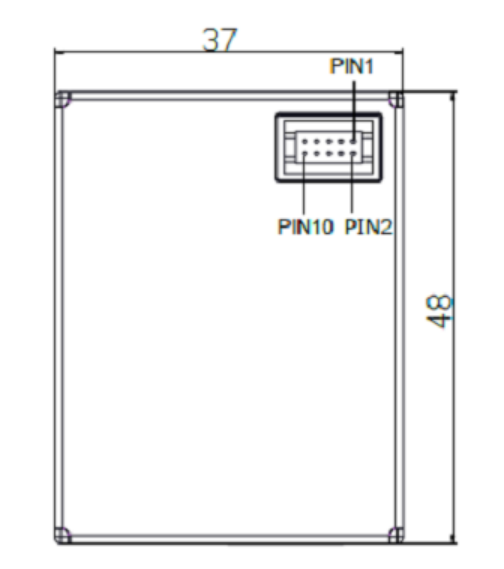

Physical Size 48×37×12 Millimeter (mm)

To learn more, please download the PDF.
