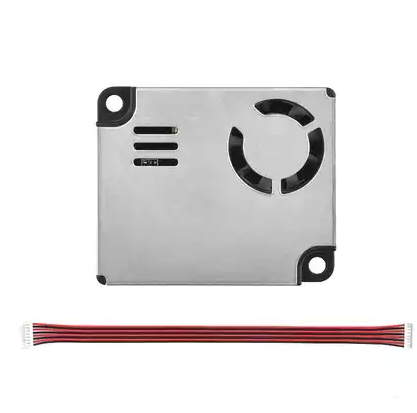

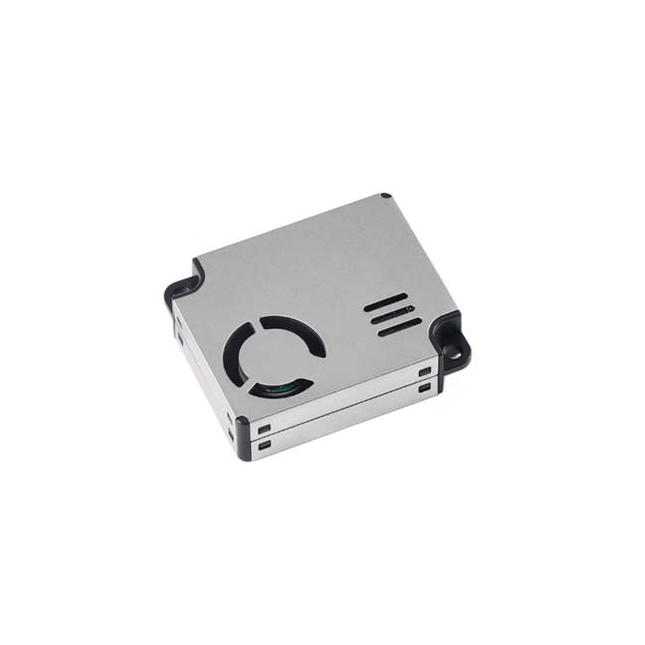

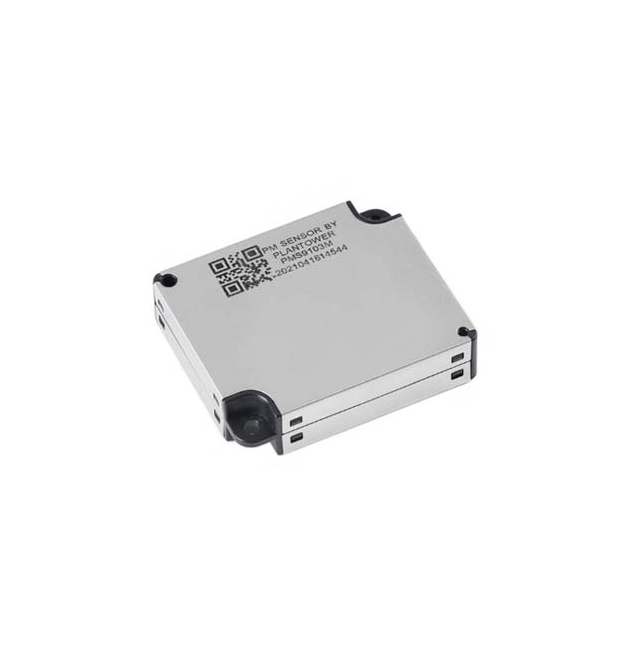

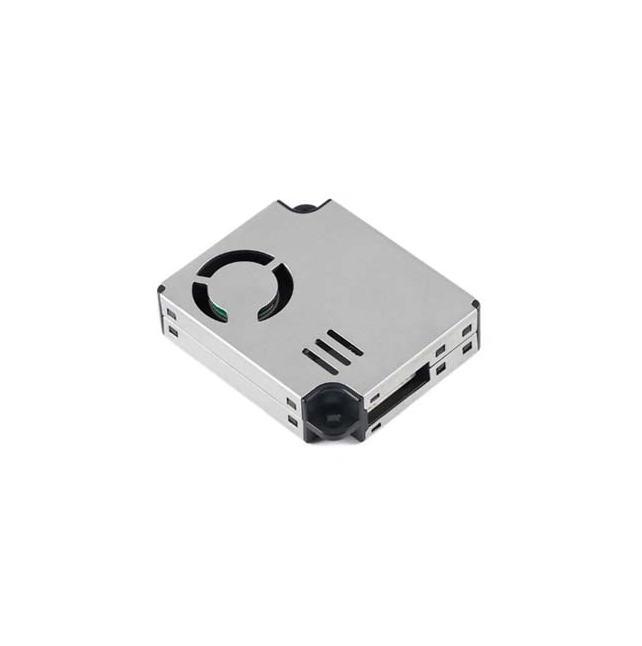

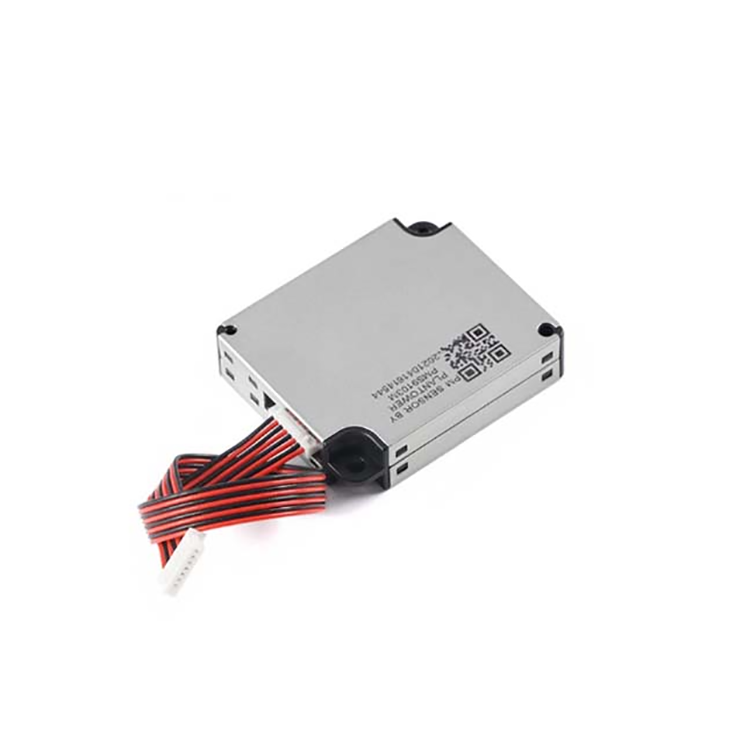

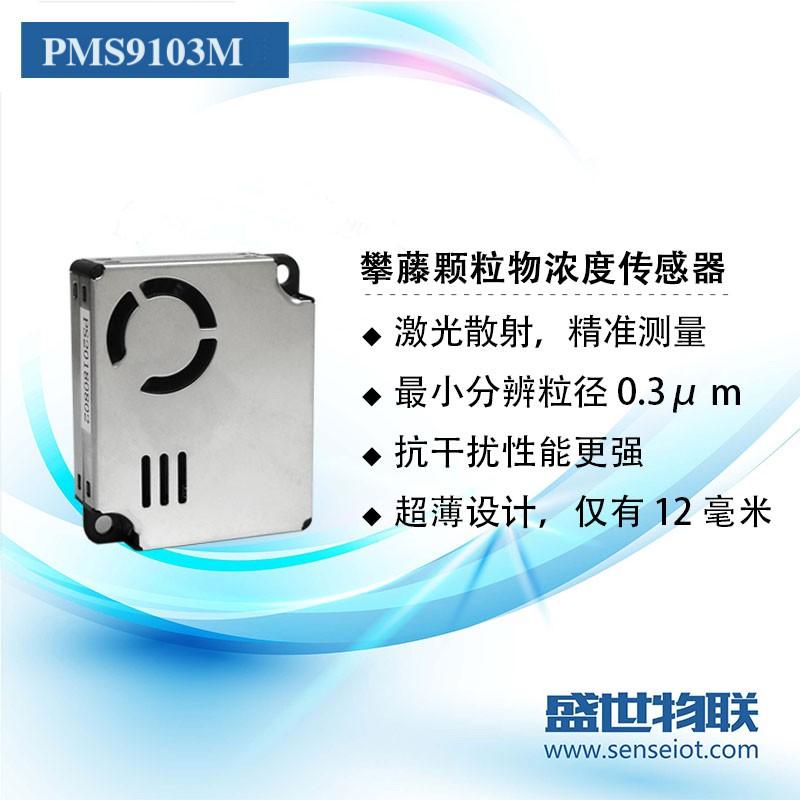

PMS9103M

Product Introduction

The PMS9103M is a digital and universal particle concentration sensor used to obtain the number of suspended particles in the air, i.e., the concentration of particles, and output them in the form of a digital interface. This sensor can be inserted into variable instruments related to the concentration of suspended particles in the air or other environmental improvement equipment to provide correct concentration data in time.

Laser scattering principle is used for such sensor, i.e., produce scattering by using laser to radiate suspending particles in the air, then collect scattering light in a certain degree, and finally obtain the curve of scattering light change with time. In the end, equivalent particle diameter and the number of particles with different diameter per unit volume can be calculated by microprocessor based on MIE theory.

Features

• Laser scattering principle
• Zero false alarm rate
• Real-time response
• Minimum distinguishable particle diameter: 0.3 micrometer
• High anti-interference performance because of the structure of six sides shielding

Applications

• Air quality monitors
• HVAC systems
• Air purifiers
• Environmental improvement equipment

Specifications Table

To learn more, please download the PDF.
