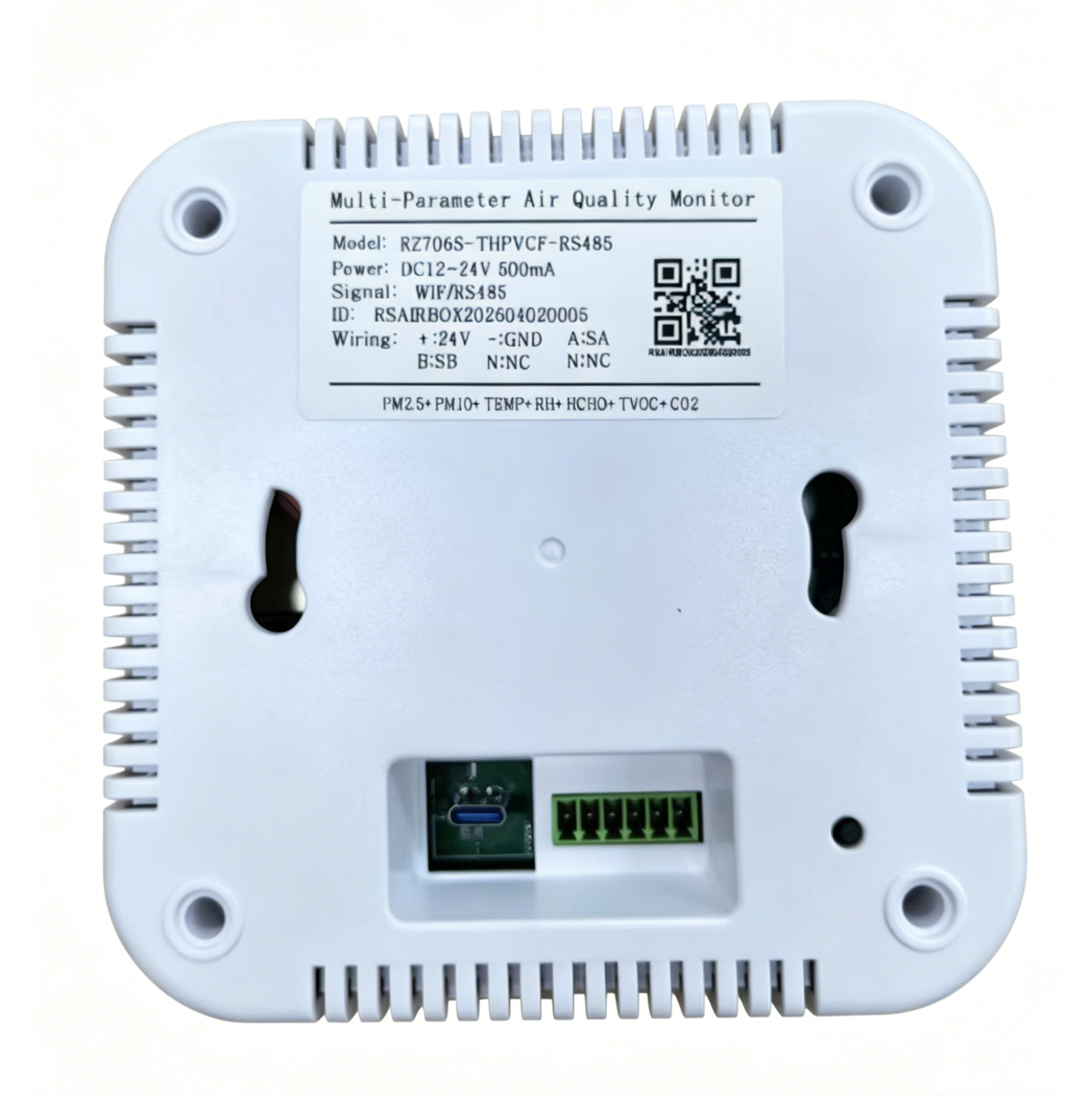

RZ706S- THPVCF-RS485

RZ706S- THPVCF-RS485

制造商：: Shenzhen Senseiot

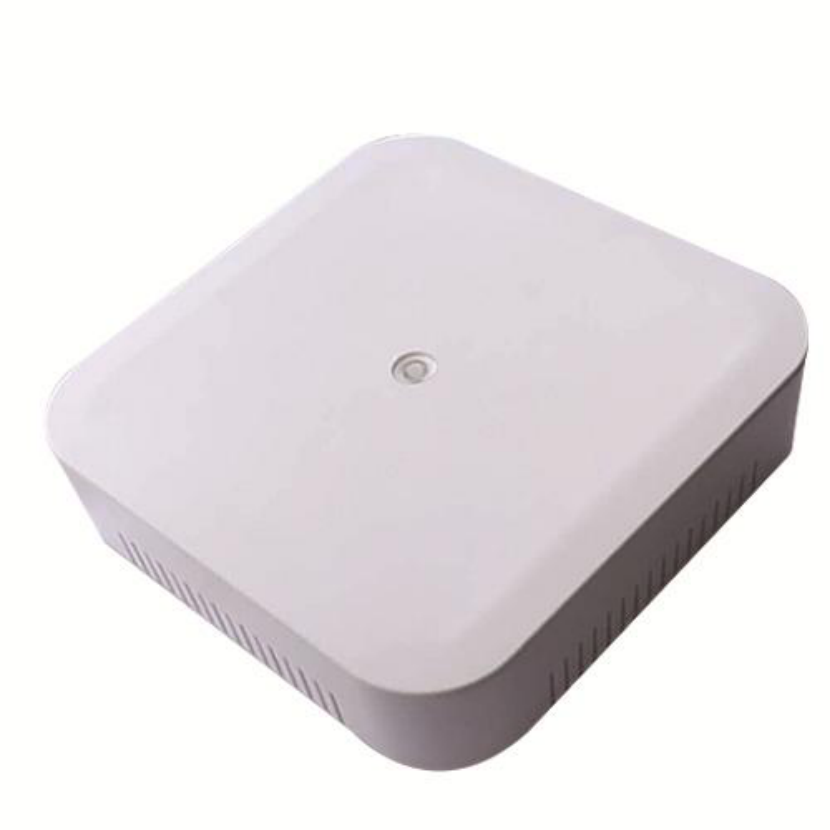

Multi-parameter air quality detector

规格

Product Introduction

The instrument is designed for detecting PM2.5 particle concentration in indoor environments and public open areas. Additionally, it is capable of monitoring various environmental parameters such as temperature, humidity, air pressure, VOCs (Volatile Organic Compounds), CO2 (Carbon Dioxide), O2 (Oxygen), formaldehyde, and carbon monoxide, making it a highly versatile device.

Features

  • Multi-parameter detection including PM2.5, formaldehyde, CO, VOC, smoke, oxygen, CO2, temperature, humidity, atmospheric pressure, noise, and illuminance
  • Modbus RS485 communication with optional WiFi, ZigBee, or TCP/IP connectivity
  • Electrochemical, semiconductor, and optical detection methods for accurate measurements
  • Wide operating temperature and humidity ranges for versatile deployment

Applications

  • Indoor air quality monitoring in residential and commercial buildings
  • Public open area environmental monitoring
  • Industrial workplace safety and air quality assessment
  • Smart building and HVAC system integration
  • Environmental research and data collection

Specifications Table

Operating Temperature Range -10 ~ 50℃
Operating Humidity Range 0 ~ 95%RH
Storage Temperature Range -20 ~ 60℃

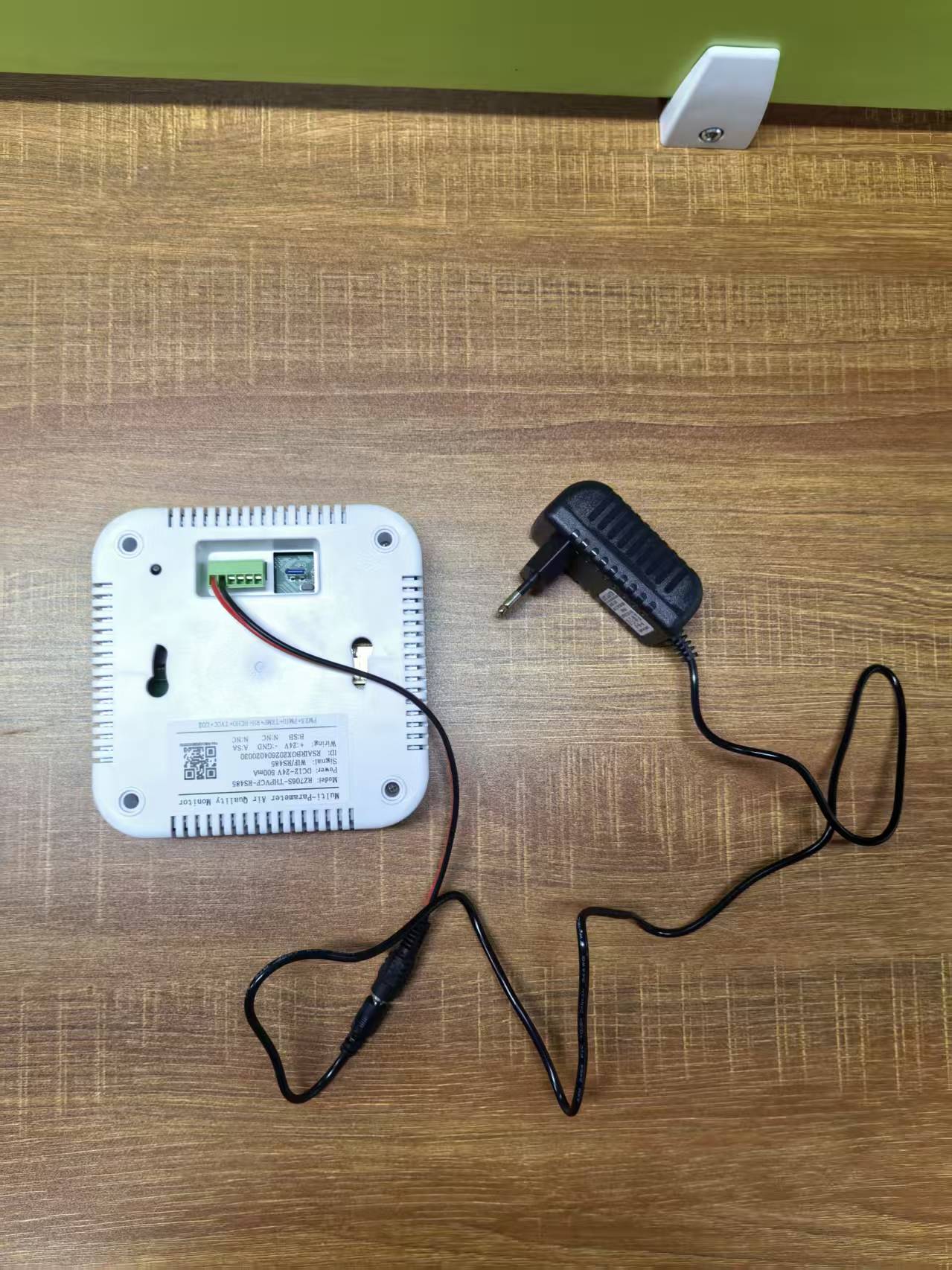

Power Input DC 12~24
Current Consumption Average 350mA, peak 600mA

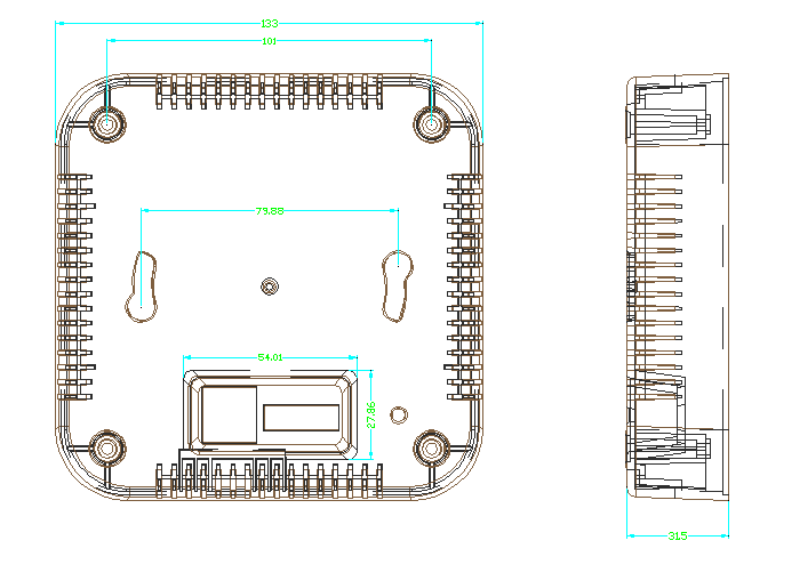

Dimensions 450g/133mm×133mm×39mm
PM2.5 Detection Range 0~1000µg/m³
PM2.5 Detection Accuracy <±15µg/m³ + 10% of reading
PM2.5 Detection Method Optical scattering method
Formaldehyde Detection Range 0~5.00ppm
Formaldehyde Detection Accuracy <±5% FS
Formaldehyde Detection Method Electrochemical
CO Detection Range 0~500ppm
CO Detection Accuracy <±5% FS
CO Detection Method Electrochemical
VOC Detection Range 0~10mg/m³
VOC Detection Accuracy <±8% FS
VOC Detection Method Semiconductor
Smoke Detection Range 0~2000ppm
Smoke Detection Method Semiconductor
Oxygen Detection Range 0~25.0% VOL
Oxygen Detection Accuracy <2% FS
Oxygen Detection Method Electrochemical, 2-year lifespan
CO2 Detection Range 0~5000ppm
CO2 Detection Accuracy ±50ppm + 5% of reading
CO2 Detection Method Non-dispersive Infrared Detection
Temperature Measurement Range -20 ~ 85℃
Temperature Measurement Accuracy ±0.5℃
Humidity Measurement Range 0 ~ 100% RH
Humidity Measurement Accuracy ±3% RH
Atmospheric Pressure Range 200~1200hPa
Atmospheric Pressure Accuracy ±0.1%
Noise Range 30-130dB
Noise Accuracy ±1.5dB
Noise Detection Method Electret microphone
Illuminance Range 0-65535 LUX
Illuminance Accuracy ±5%

To learn more, please download the PDF.
