WZ-H3-NK

Name: WZ-H3-NK
Brand: PROSENSE
SKU: WZ-H3-NK
Availability: OutOfStock

制造商：: PROSENSE

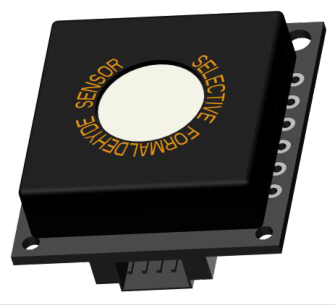

PROSENSE WZ-H3-NK Electrochemical Formaldehyde Sensor

规格

Product Introduction

The WZ-H3-N is a selective and high temperature resistant formaldehyde detection module, specifically designed for applications where operating temperatures exceed 60°C. It utilizes a solid electrolyte integrated micro fuel cell technology, making it the first of its kind applied in fuel cell vehicles for HCHO detection. This real solid electrolyte design ensures it is free from electrolyte leakage or drying out. The module is pre-calibrated at the factory and is not influenced by low concentrations of interference gases such as ethanol, providing accurate detection results. It can be directly integrated into your system.

Features

Selective detection
High temperature resistance
High precision
Fast response
Long service life
Low power consumption
High stability

Applications

HCHO detection in vehicle
Air conditioners
Smart home
Portable devices
Wearable devices
Air purifier

Specifications Table

Detection Principle	Micro fuel cell
Detectable Gas	HCHO
Detection Range	0-1ppm
Overload	5ppm
Input Voltage	4.5-7V
Response Time (T90)	<90S
Resolution	0.01ppm
Accuracy	±30ppb or ±10%, whichever is greater (25±3°C) (50±5%RH)
Operating Temperature Range	-40°C to 70°C
Operating Humidity Range	10% - 90%RH (non-condense)
Weight	4g

To learn more, please download the PDF.
